Dell EMC PowerEdge R7515 Service Manual

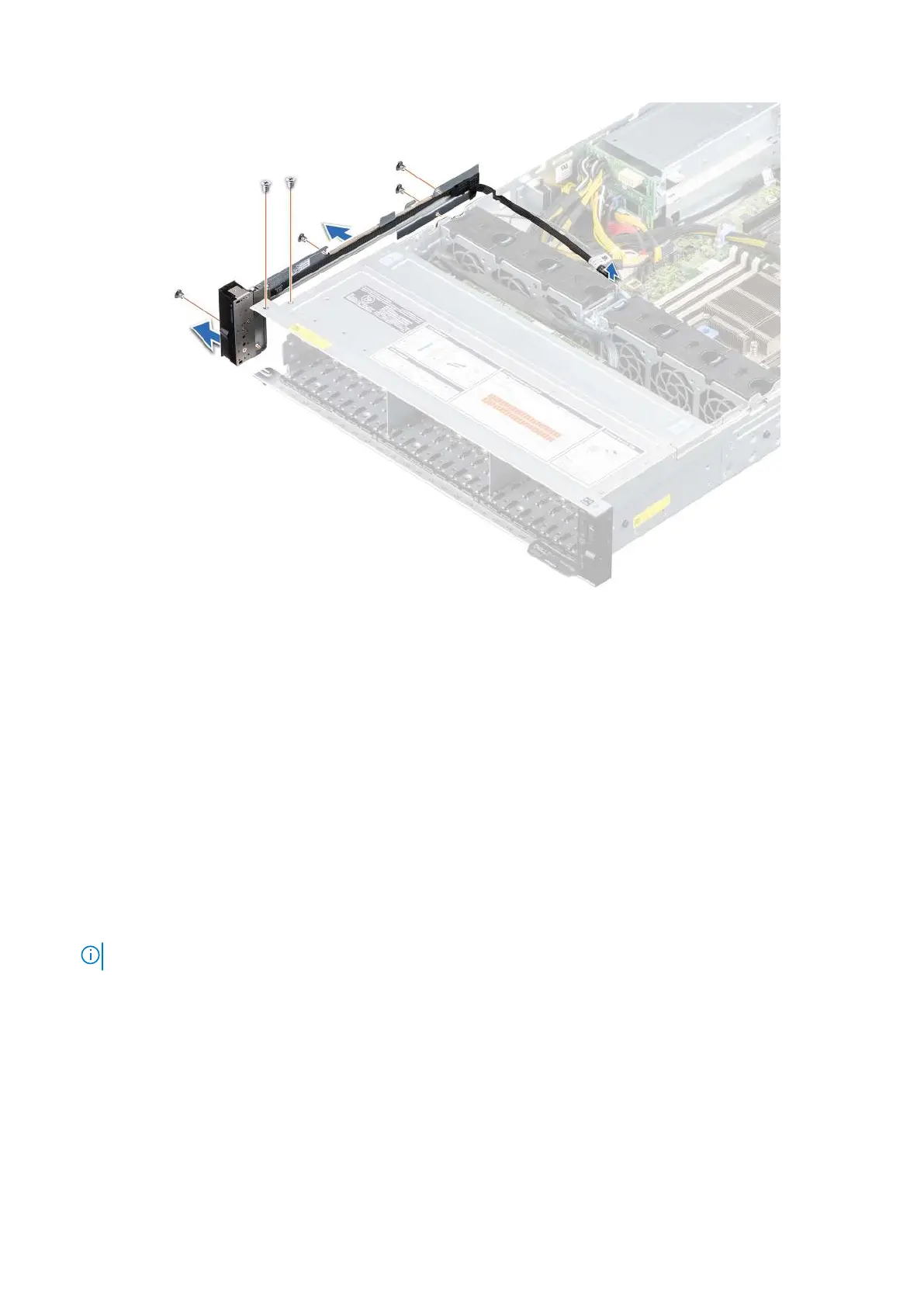

Figure 127. Removing the left control panel
Next steps
1. Replace the left control panel.
Installing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
Steps
1. Route the left control panel cable through the chassis sidewall.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Align and insert the tabs on the left control panel assembly into the slots on the chassis.
3. Using a Phillips #1 screwdriver, replace the screws to secure the left control panel assembly to the chassis.
4. Connect the left control panel cable to the connector on the system board.
Installing and removing system components
121

Dell EMC PowerEdge R7515 Specifications

General

Maximum Processors	1
Cores per Processor	Up to 64
Processor	AMD EPYC 7002 Series
Memory Type	DDR4
Memory Slots	16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA or up to 24 x 2.5" SAS/SATA/NVMe drives
RAID Support	PERC H345, H745
Network Options	1GbE, 10GbE, 25GbE
Network Controller	1 x 1GbE LOM
Power Supply	750W, 1100W
Form Factor	2U Rack
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
