Air shroud
Removing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
Steps
Hold the air shroud at both the ends, and lift it from the system.

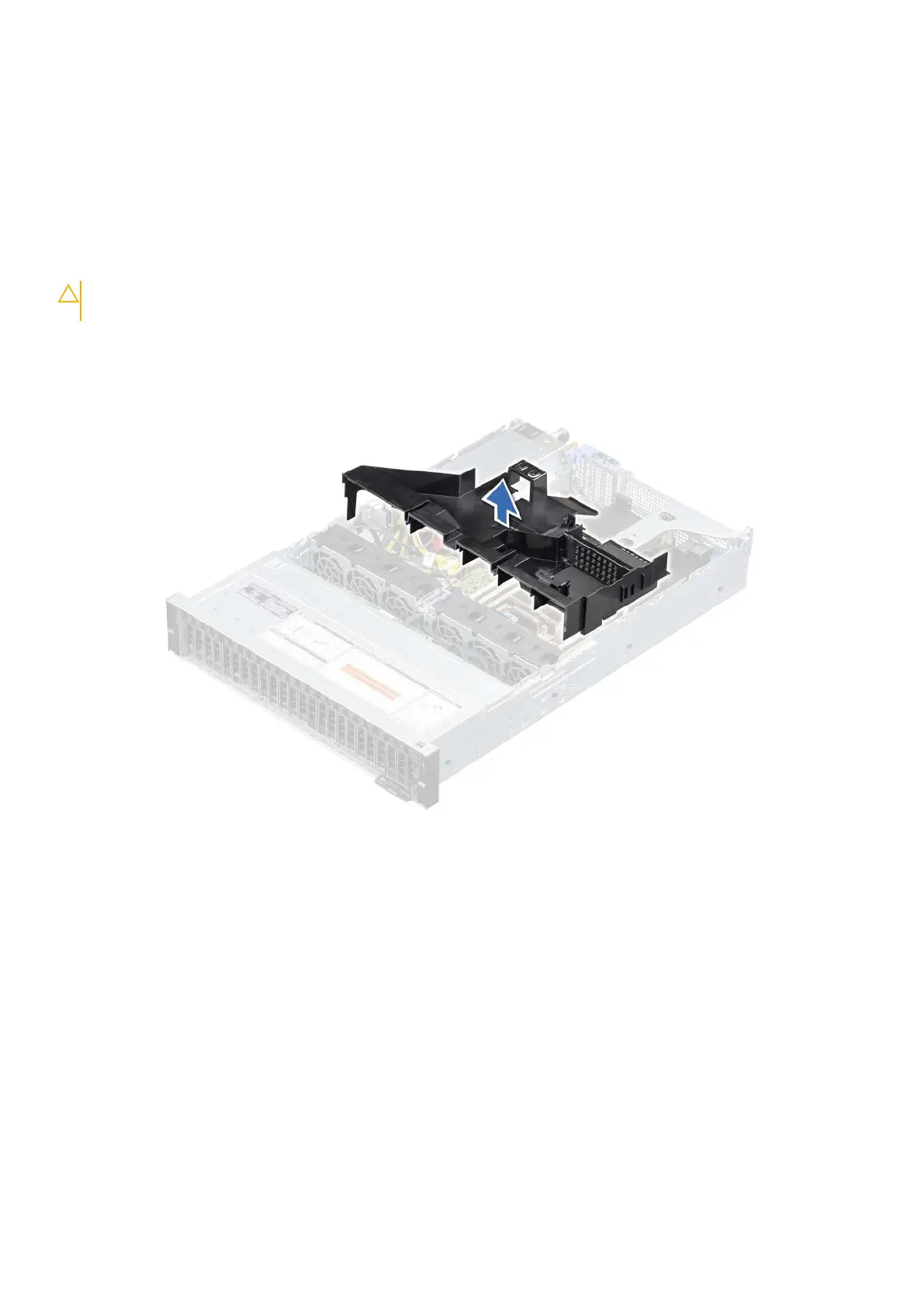

Figure 23. Removing the air shroud
34
Installing and removing system components
