Dell EMC PowerEdge R7515 Service Manual

Steps
1. Align and insert the tabs on the bezel into the slots on the chassis.
2. Press the bezel until the release button clicks in place.
3. Lock the bezel.

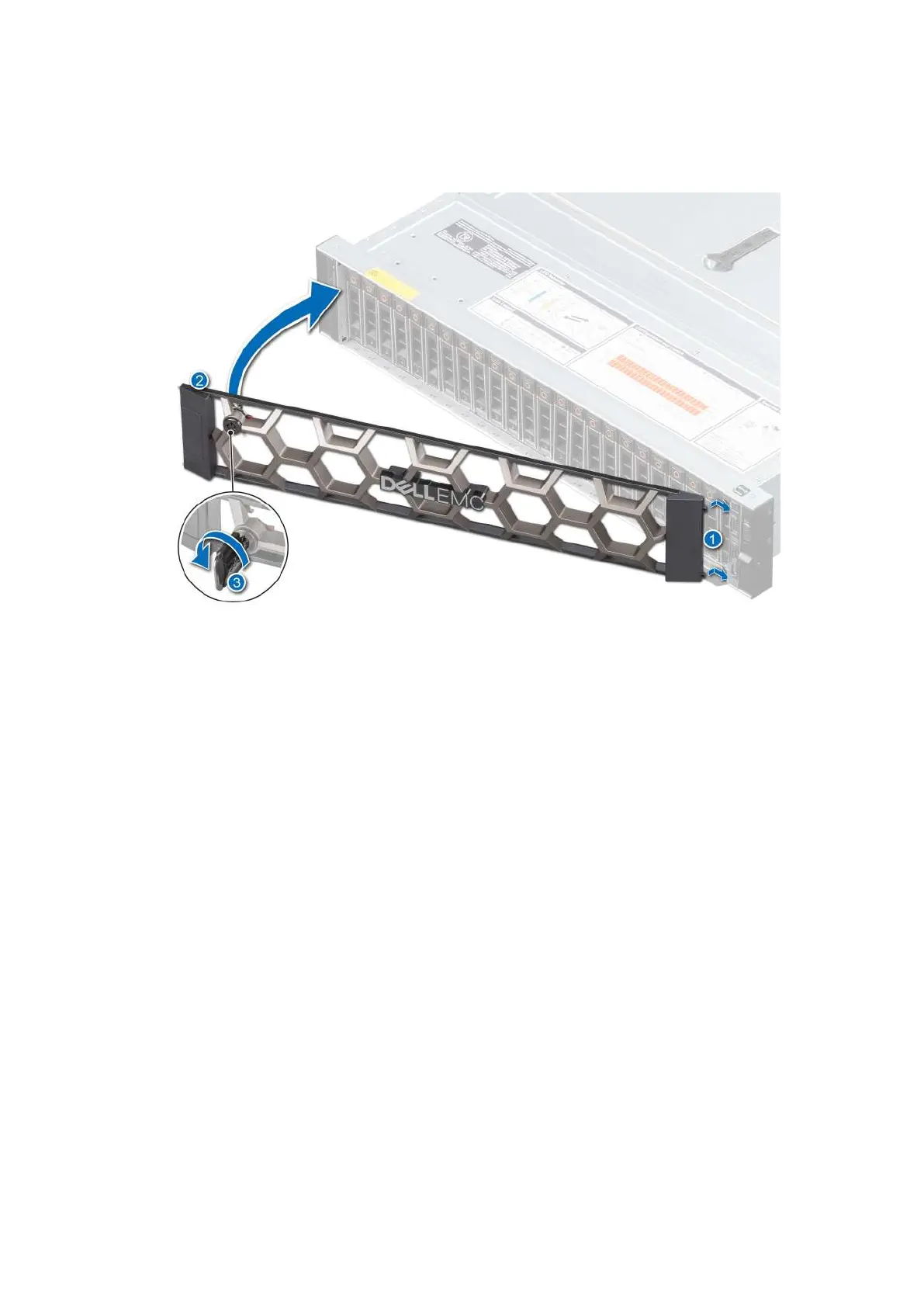

Figure 18. Installing the front bezel
System cover
Removing the system cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Power off the system, including any attached peripherals.
4. Disconnect the system from the electrical outlet and peripherals.
Steps
1. Use a 1/4 inch flat head or a Phillips #2 screwdriver to turn the lock counterclockwise to the unlock position.
2. Open the release latch until the system cover slides back.
3. Lift the cover from the system.
Installing and removing system components
29

Dell EMC PowerEdge R7515 Specifications

General

Maximum Processors	1
Cores per Processor	Up to 64
Processor	AMD EPYC 7002 Series
Memory Type	DDR4
Memory Slots	16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA or up to 24 x 2.5" SAS/SATA/NVMe drives
RAID Support	PERC H345, H745
Network Options	1GbE, 10GbE, 25GbE
Network Controller	1 x 1GbE LOM
Power Supply	750W, 1100W
Form Factor	2U Rack
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
