Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

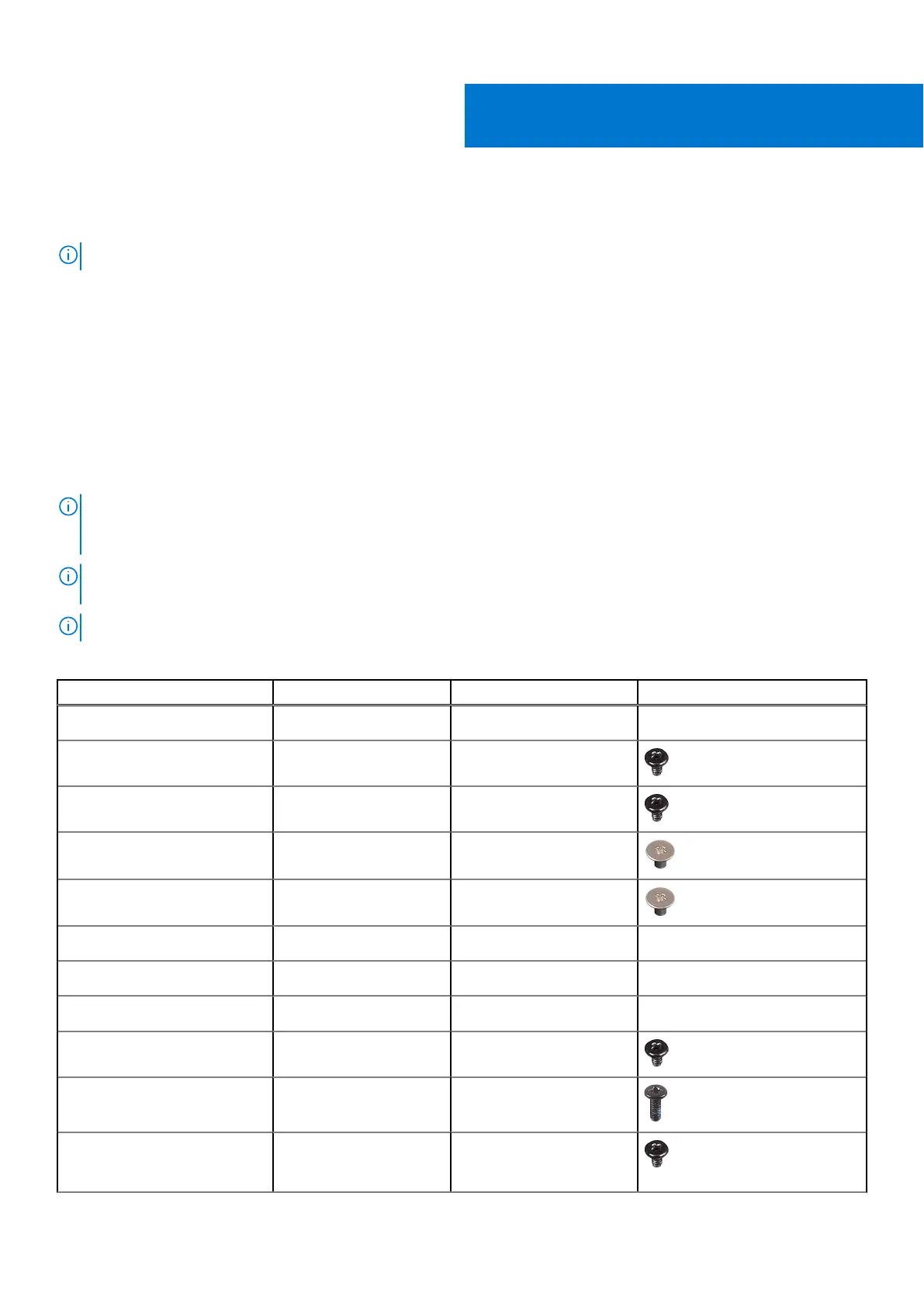

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover Captive screw 8
N/A
WLAN M2x3 1
WWAN M2x3 1
M.2 2230 solid-state drive M2x2.5 2
M.2 2280 solid-state drive M2x2.5 2
3-cell battery M2x4.5 (captive screw) 3
N/A
4-cell battery M2x4.5 (captive screw) 3
N/A
Heat sink-integrated Captive screw 4
N/A
System fan M2x3 3
USB Type-C support bracket M2x5 3
System board M2x3
M2x2.5
2
2
2
