NOTE: The M.2 card installed on your computer depends on the configuration ordered. Supported card configurations on
the M.2 card slot:
● M.2 2230 solid-state drive
● M.2 2280 solid-state drive

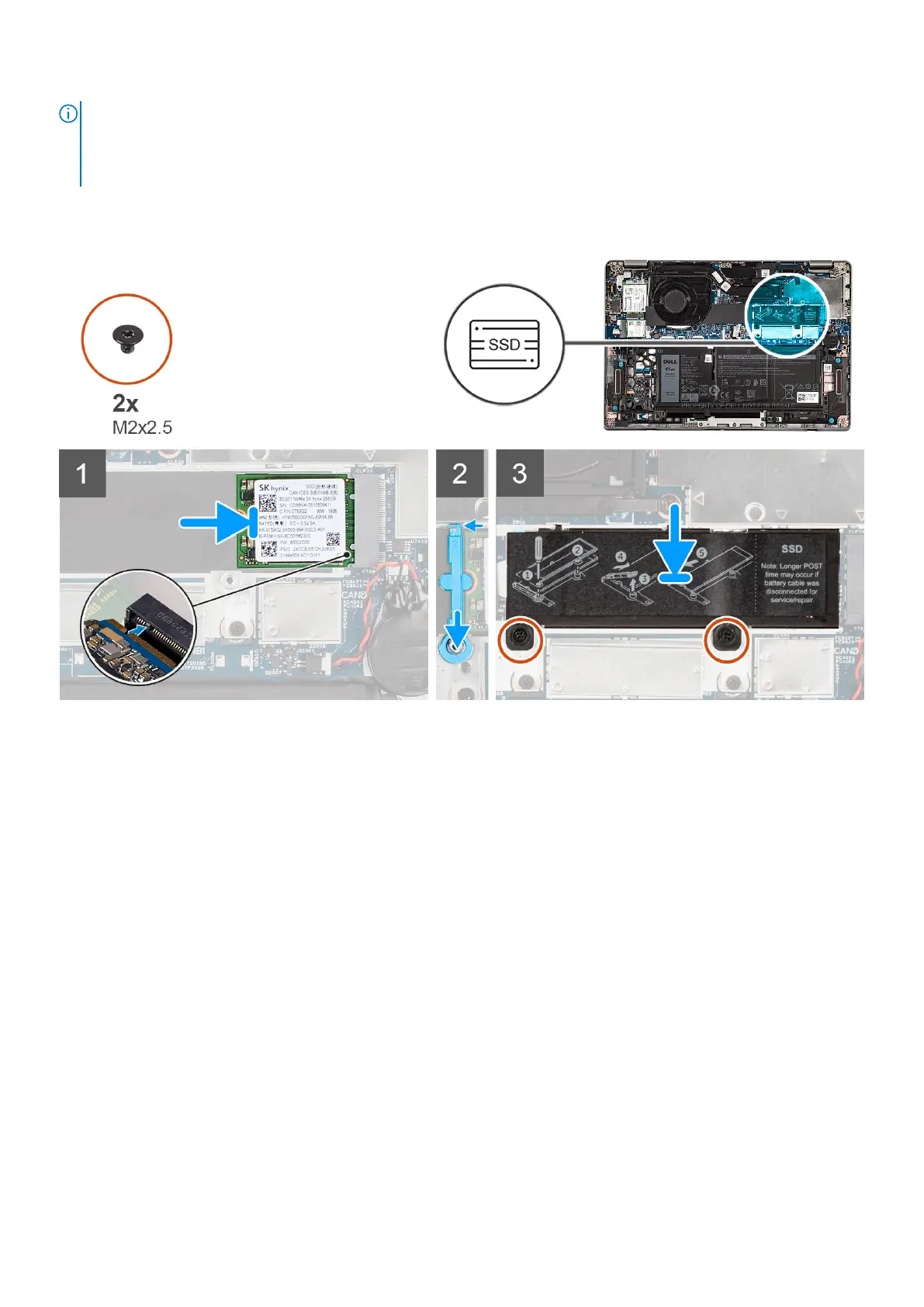

The following image indicates the location of the solid-state drive and provides a visual representation of the installation
procedure of M.2 2230 SSD.
Steps
1. Align the notch on the solid-state drive with the tab on the M.2 card slot.
2. Slide the solid-state drive into the M.2 card slot on the system board.
3. Slide the solid-state drive holder over the hook and press it down.
4. Align the solid-state drive thermal plate and firmly press to cover the solid-state drive.
5. Replace the two (M2x2.5) screws that secure the solid-state drive thermal plate to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in after working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the 3-cell battery or 4-cell battery.
Removing and installing components
41
