Steps

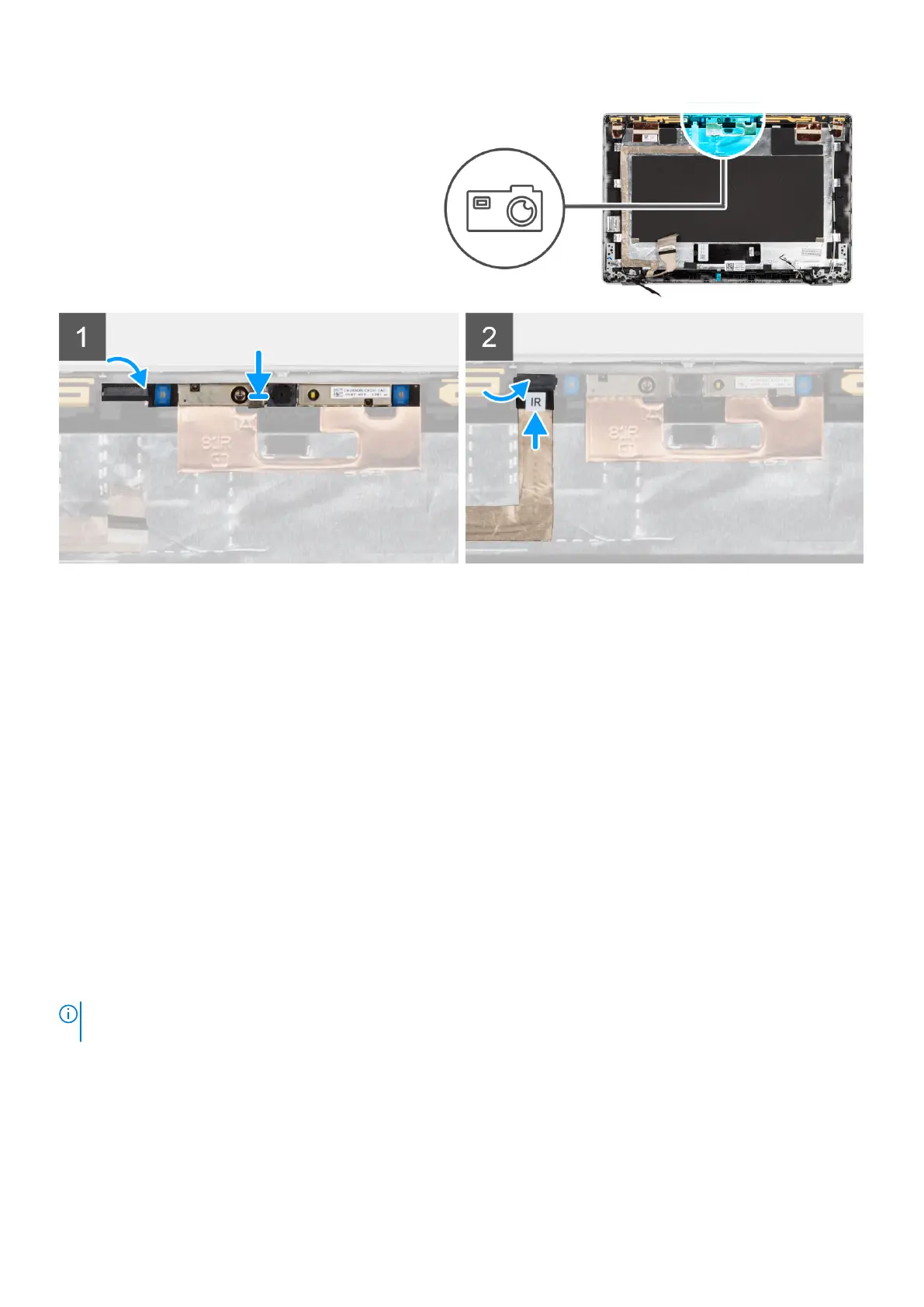

1. Insert the infrared camera into the slot on the display back cover.
2. Connect the infrared camera cable to the connector and adhere the adhesive tape above the camera connector.
Next steps
1. Install the display panel.
2. Install the display hinges.
3. Install the display bezel.
4. Install the display assembly.
5. Install the 3-cell battery or 4-cell battery.
6. Install the base cover.
7. Follow the procedure in after working inside your computer.
Display back cover
Removing the display back-cover
Prerequisites
NOTE:
The display back-cover removal procedure is applicable only for Latitude 5330 laptop and not for the 2-in-1
configuration.
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the 3-cell battery or 4-cell battery.
4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display hinges.
7. Remove the display panel.
