Steps
1. Disconnect the battery cable from its connector on the system board.
2. Loosen the three captive screws that secure the battery to the palm-rest assembly.
3. Lift the battery off the palm-rest assembly.
Installing the 4-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: Latitude 5330 supports 3-cell 41 WHr and 4-cell 58 WHr battery configuration.

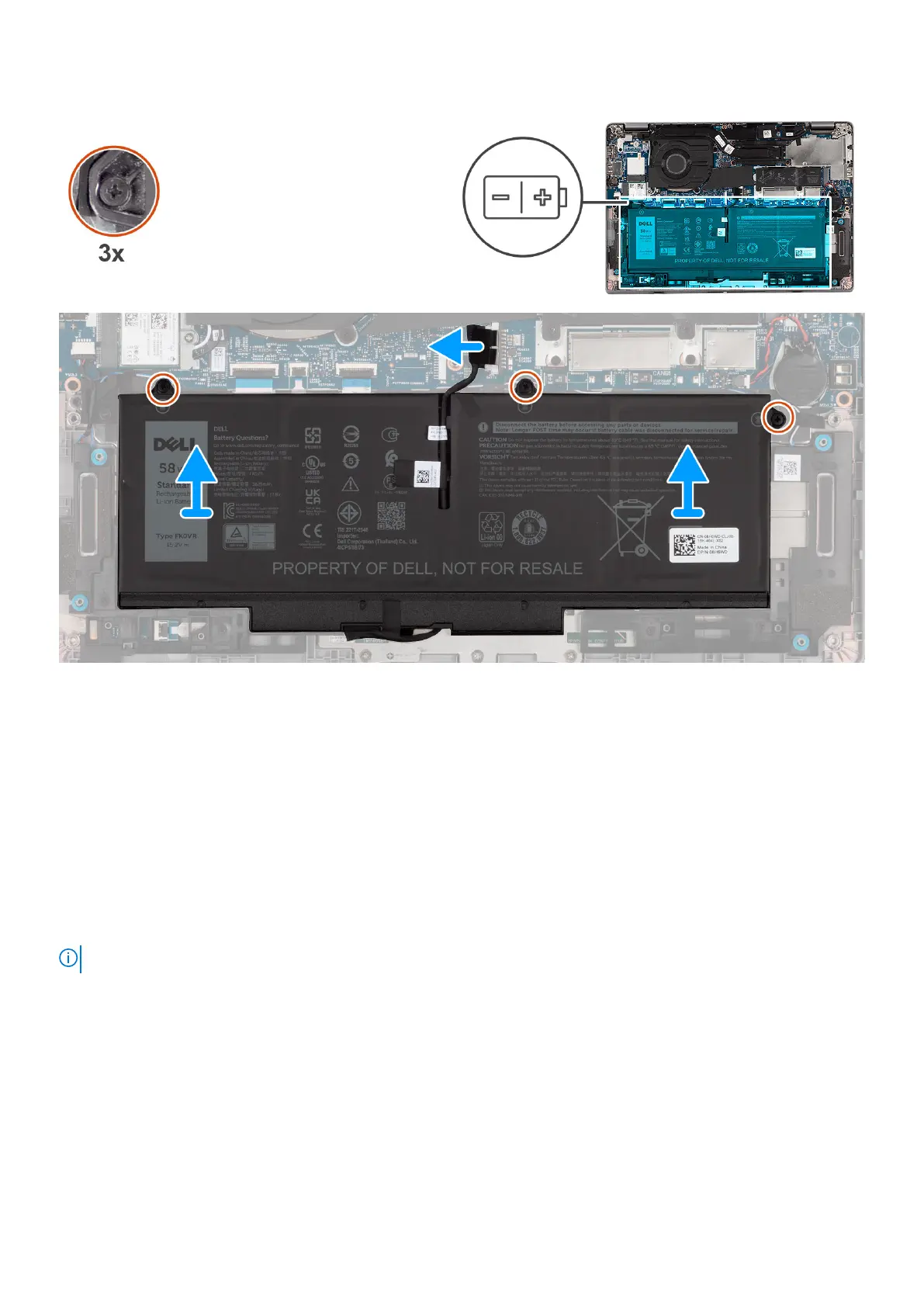

The following image indicates the location of the 4-cell 58 WHr battery and provides a visual representation of the installation
procedure.
Removing and installing components
27
