Steps
1. Align and place the smart card reader on the palm-rest assembly.
2. Replace the two (M2x2) screws to secure the smart card reader to the palm-rest assembly.
3. Align the screw holes on the right battery frame with the screw holes on the palm-rest assembly.
4. Replace the two (M2x2) screws to secure the right battery frame to the palm-rest assembly.
5. Connect the smart card reader cable to its connector on the USH board and close the latch.
6. Connect the touchpad cable to its connector and adhere the touchpad cable to the smart card module.
Next steps
1. Install the speakers.
2. Install the 3-cell battery or 4-cell battery.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
SIM card slot filler
Removing the SIM card slot filler
Prerequisites
Follow the procedure in before working inside your computer.
About this task
NOTE:
For models shipped with WLAN antennas only, the SIM card slot filler is a separate service part and is not included
with replacement palm rest, as a result the SIM card slot filler must be removed and then re-installed when replacing the
palm rest.

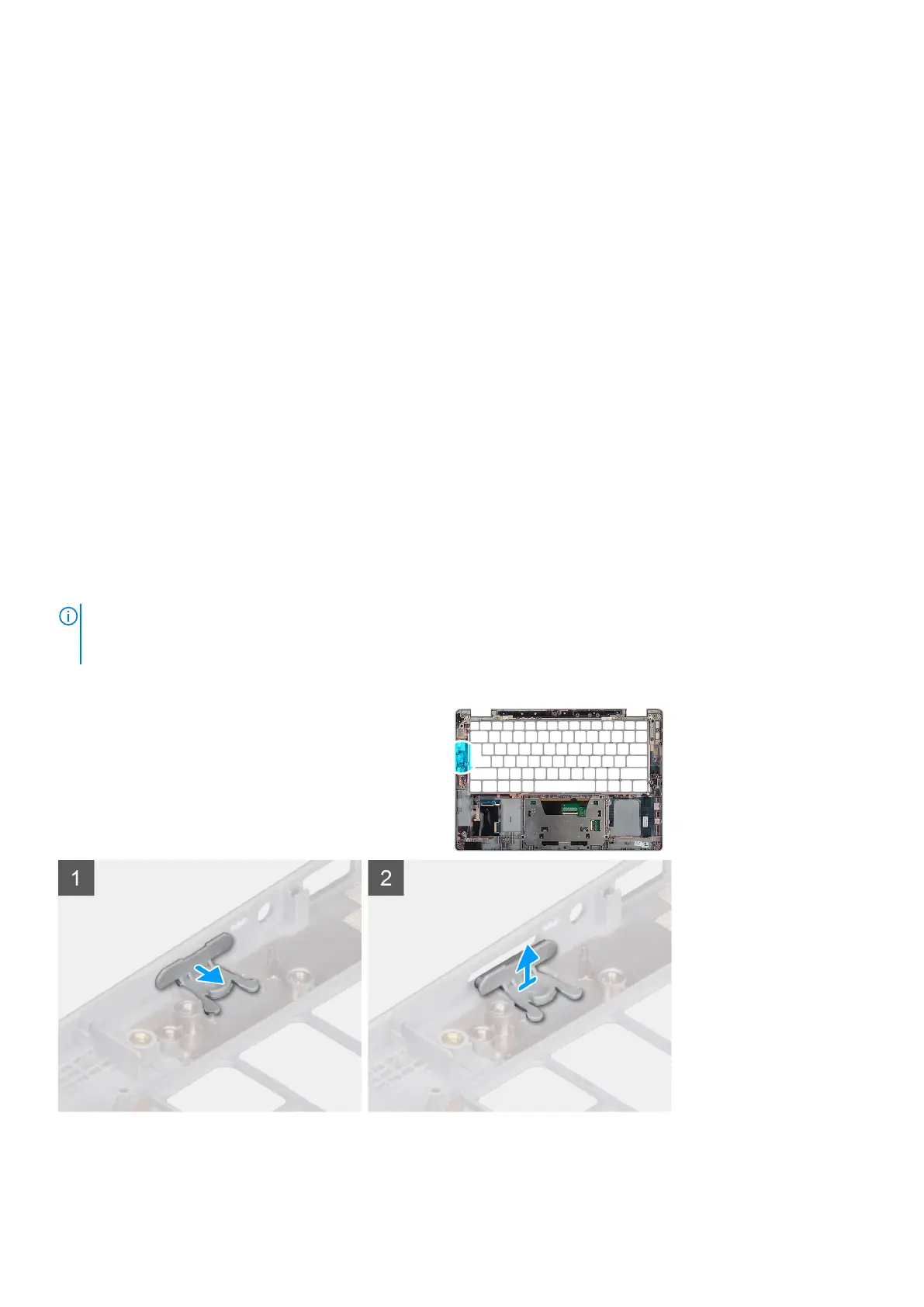

The following image provides a visual representation of the SIM card slot filler removal procedure.
Steps
1. Pull the SIM card slot filler from the top side of the palm rest.
