3. Carefully pry and lift the camera module from the display back cover.
Installing the camera
Prerequisites
NOTE: The camera installation procedure is applicable only for Latitude 5330 laptop and not for the 2-in-1 configuration.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

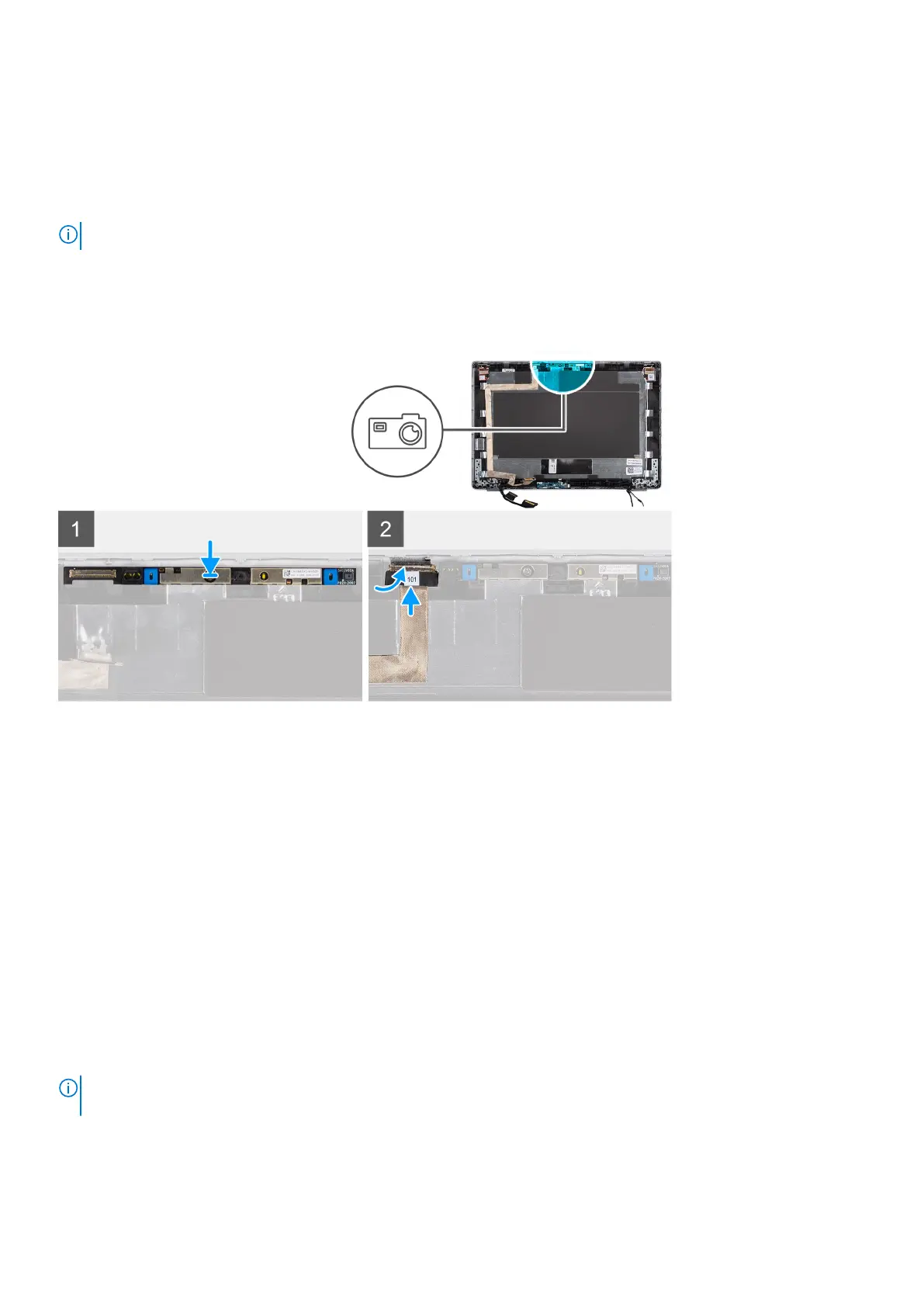

The following image indicates the location of the camera and provides a visual representation of the installation procedure.
Steps
1. Insert the camera into the slot on the display back cover.
2. Connect the camera cable to the connector and adhere the adhesive tape above the camera connector.
Next steps
1. Install the display panel.
2. Install the display hinges.
3. Install the display bezel.
4. Install the display assembly.
5. Install the 3-cell battery or 4-cell battery.
6. Install the base cover.
7. Follow the procedure in after working inside your computer.
Removing the infrared camera
Prerequisites
NOTE:
The infrared camera removal procedure is applicable only for Latitude 5330 laptop and not for the 2-in-1
configuration.
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the 3-cell battery or 4-cell battery.
Removing and installing components
101
