Steps

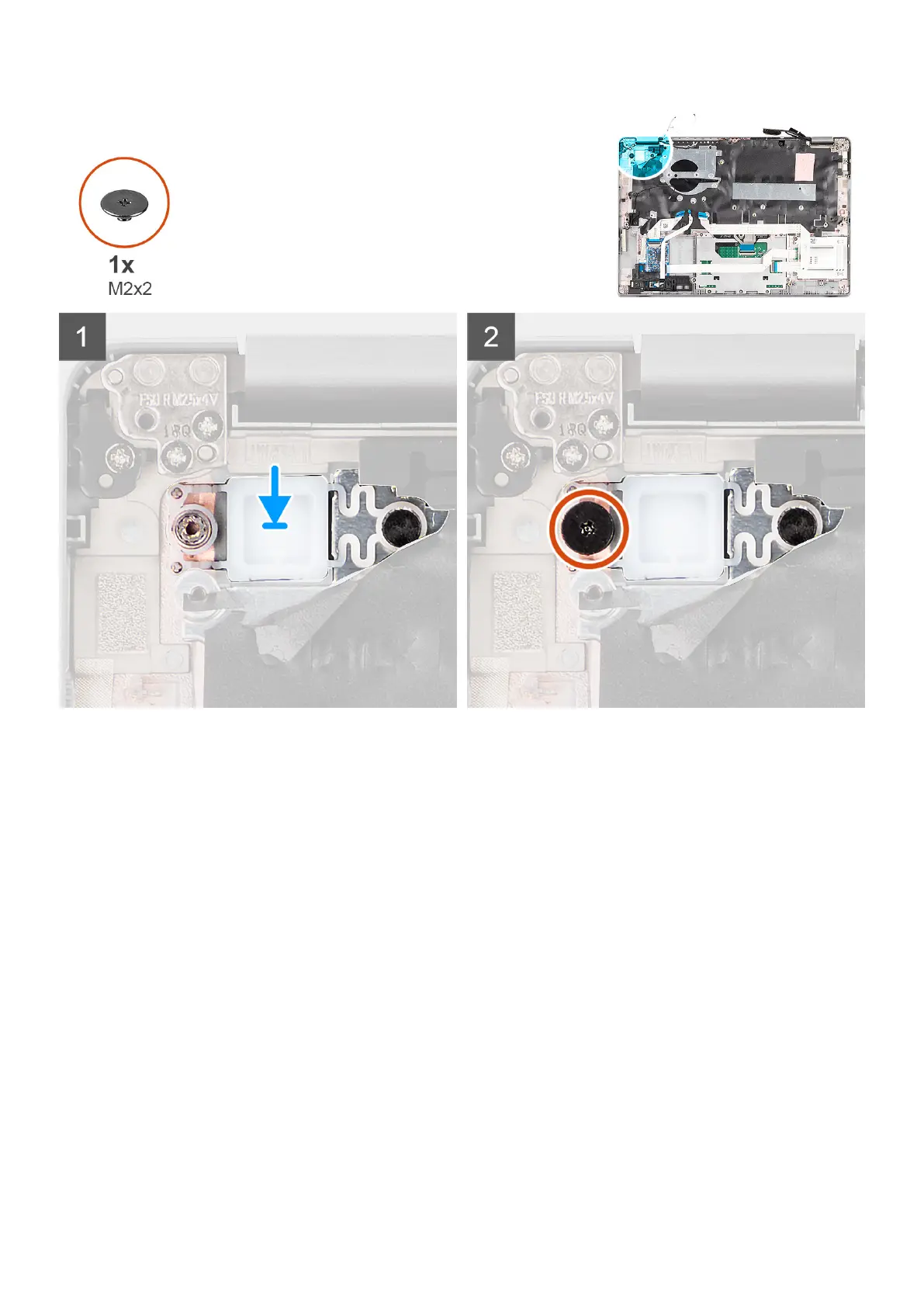

1. Align and place the power button on the palm-rest assembly.
2. Replace the (M2x2) screw to secure the power button to the palm-rest assembly.
Next steps
1. Install the system board.
2. Install the fan.
3. Install the WWAN card (optional).
4. Install the WLAN card.
5. Install the 3-cell battery or 4-cell battery.
6. Install the base cover.
7. Follow the procedure in after working inside your computer.
Removing the power button with optional fingerprint reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the 3-cell battery or 4-cell battery.
4. Remove the WLAN card.
5. Remove the WWAN card (optional).
58
Removing and installing components
