286 Configuring SNMP

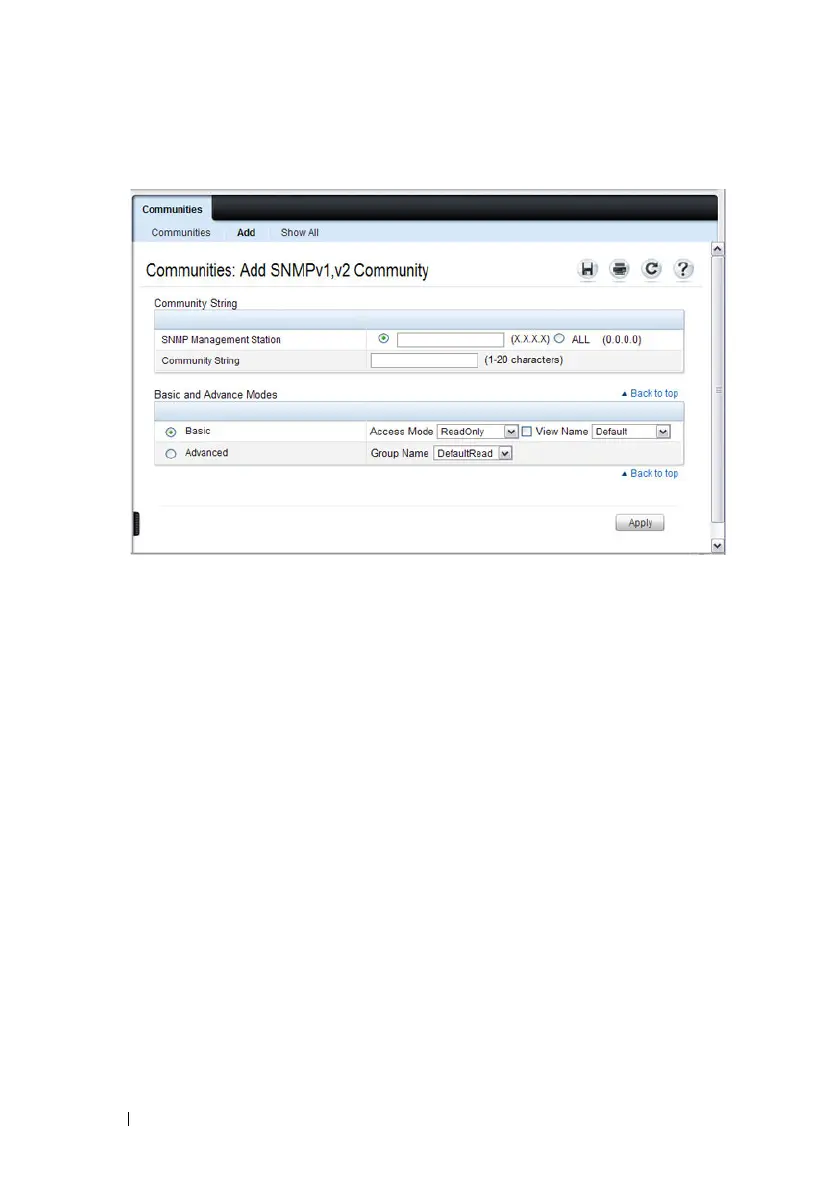

Figure 13-10. Add SNMPv1,2 Community

Specify the IP address of an SNMP management station and the

community string to act as a password that will authenticate the

management station to the SNMP agent on the switch.

Select the access mode.

Click

Apply

to update the switch.

Click Show All to view the communities that have already been configured.
