Configuring DHCP Server Settings 885

DHCP Server Statistics

Use the

Server Statistics

page to view general DHCP server statistics,

messages received from DHCP clients, and messages sent to DHCP clients.

To display the

Server Statistics

page, click Routing

→

DHCP Server

→

Server Statistics

in the navigation panel.

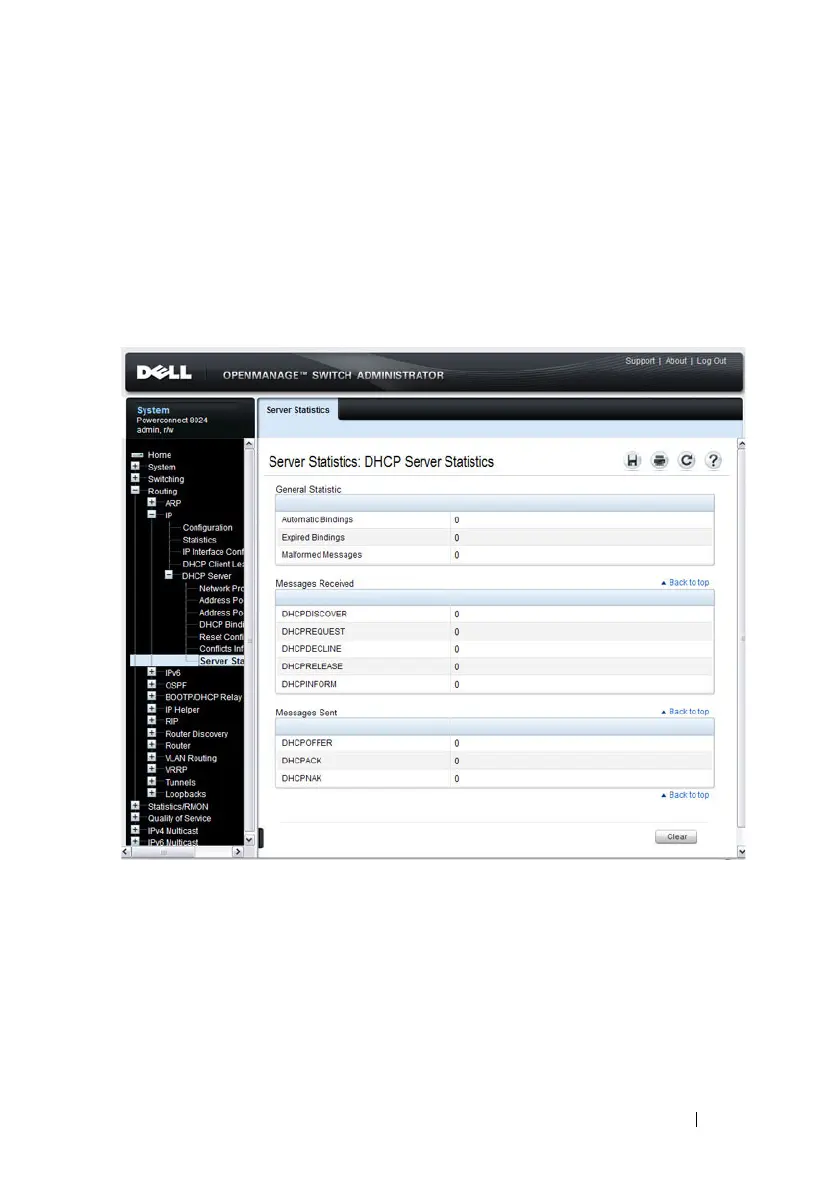

Figure 32-14. DHCP Server Statistics
