Snooping and Inspecting Traffic 777

DAI VLAN Configuration

Use the DAI VLAN Configuration page to select the VLANs for which

information is to be displayed or configured.

To display the DAI VLAN Configuration page, click Switching

→

Dynamic

ARP Inspection

→

VLAN Configuration in the navigation panel.

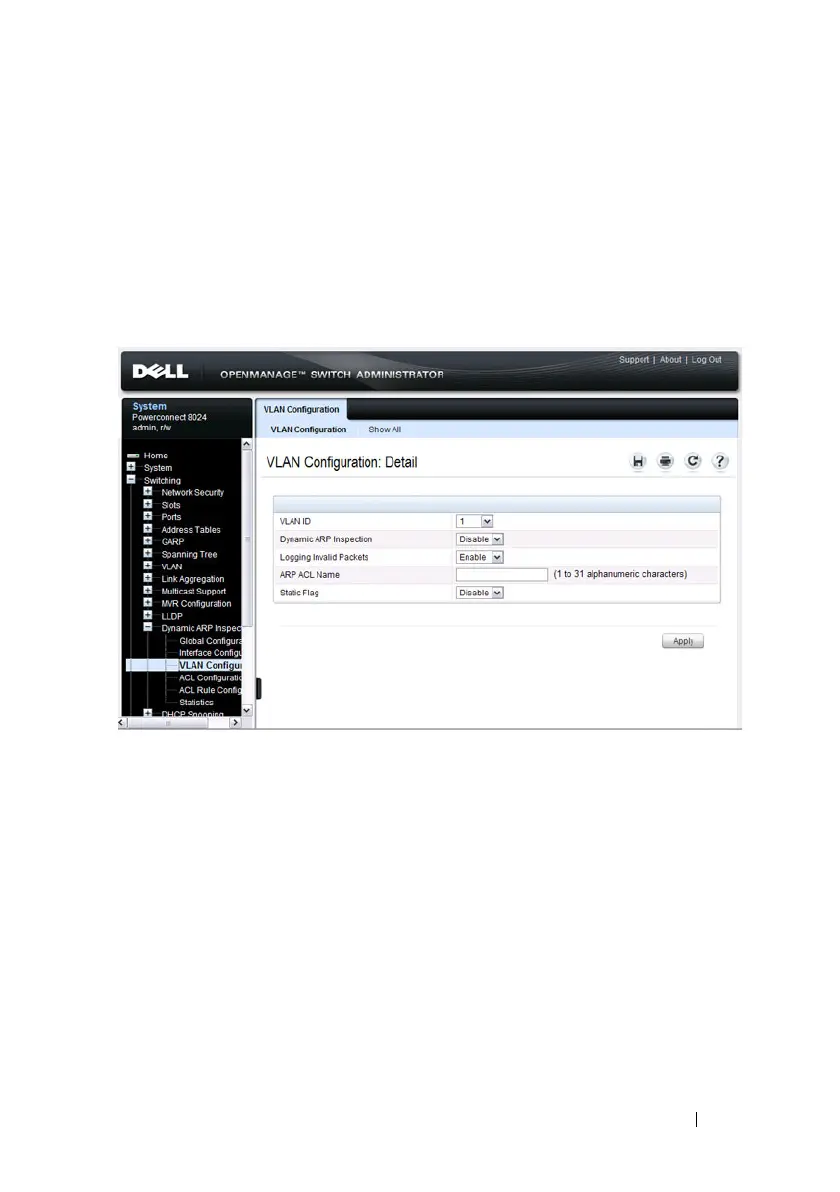

Figure 27-18. Dynamic ARP Inspection VLAN Configuration

To view a summary of the DAI status for all VLANs, click Show All.
