884 Configuring DHCP Server Settings

DHCP Server Conflicts Information

Use the

Conflicts Information

page to view information about clients that

have leased an IP address that is already in use on the network.

To display the

Conflicts Information

page, click Routing

→

DHCP

Server

→

Conflicts Information

in the navigation panel.

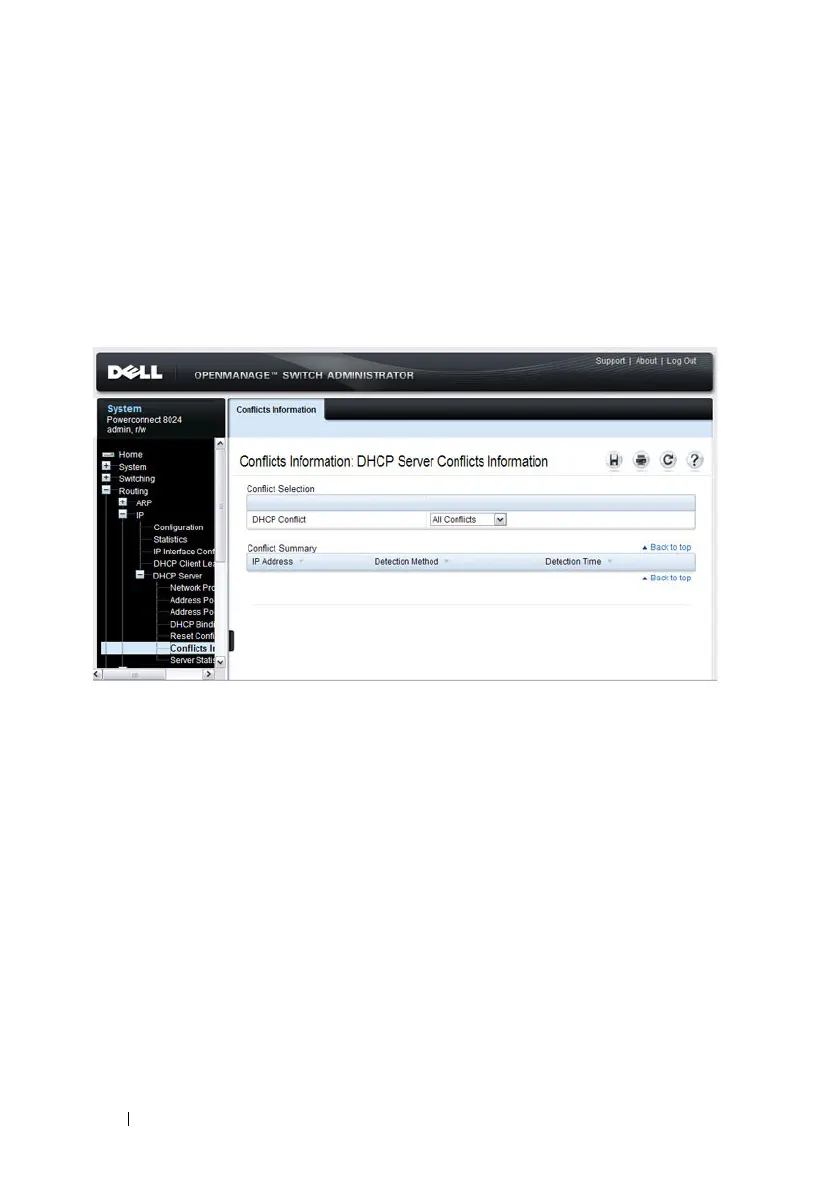

Figure 32-13. DHCP Server Conflicts Information
