774 Snooping and Inspecting Traffic

DAI Global Configuration

Use the DAI Configuration page to configure global DAI settings.

To display the DAI Configuration page, click Switching

→

Dynamic ARP

Inspection

→

Global Configuration in the navigation panel.

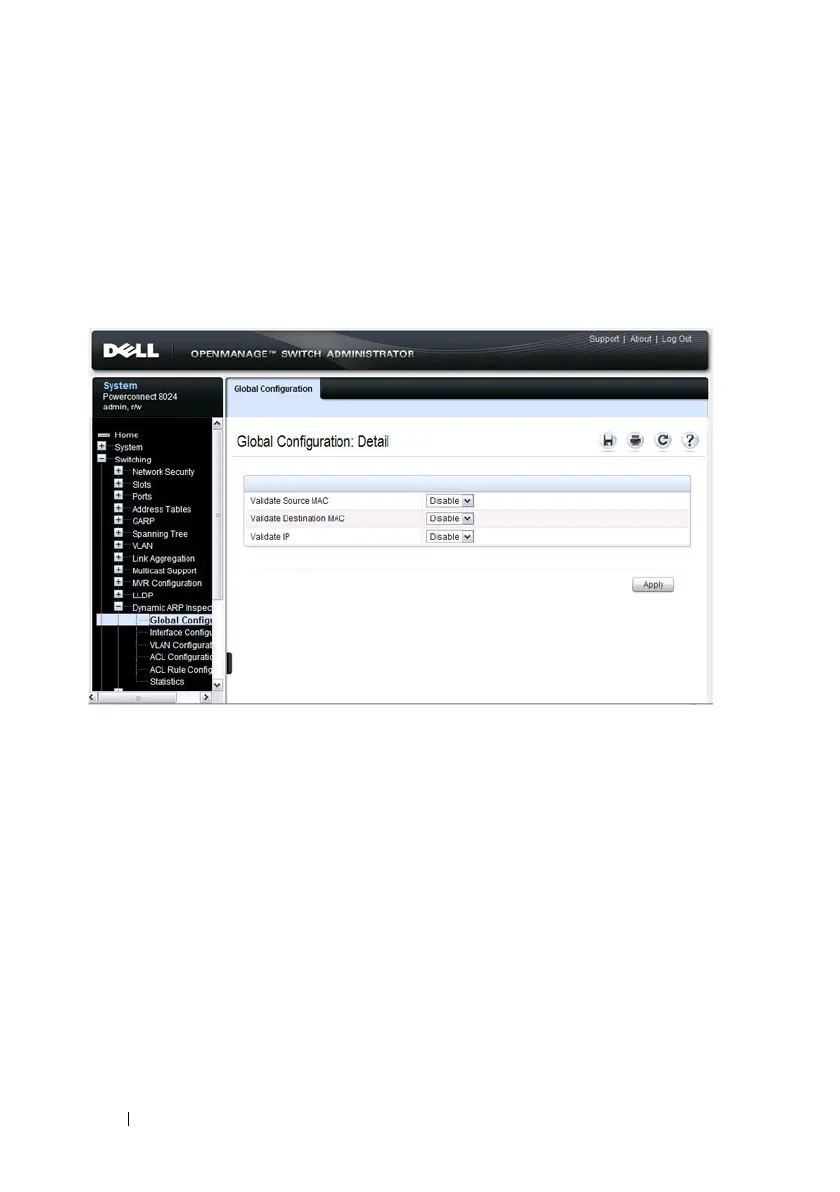

Figure 27-15. Dynamic ARP Inspection Global Configuration
