Confi
gurin
g L2 Mul
ticast
Featur
es
733
Removi
ng an
In
terfac
e fro
m a
n MVR
Group
T
o remove an inte
rface from an MVR group
:
1
Fr
o
m
t
h
e
MVR I
nterfac
e
page, c
lick
Rem
ov
e
.

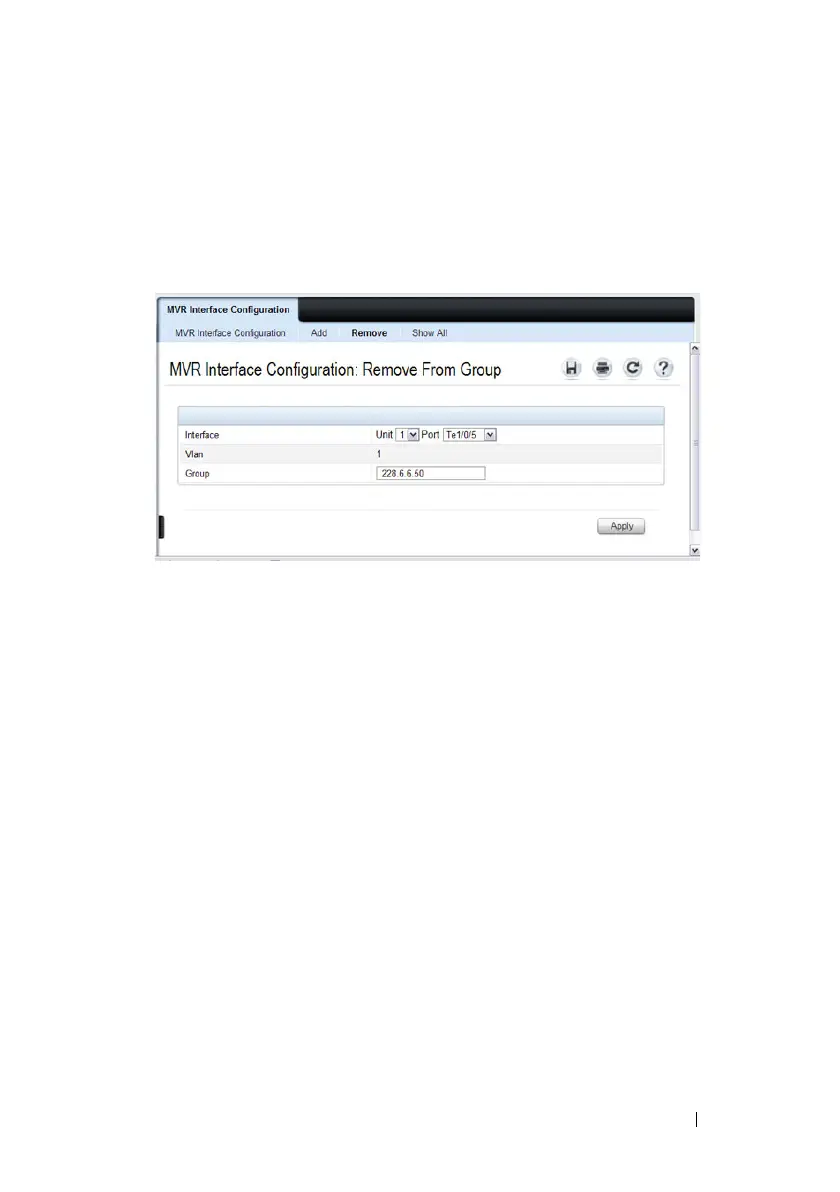

Figure 26-28.
MVR - Remove
from Group
2
Select the in
terface to remove from a
n MVR grou
p.
3
Specify the IP m
ulticast address of the MVR group.
4
Cli
ck
Apply
.
732
