Dell PowerEdge R760 User Manual

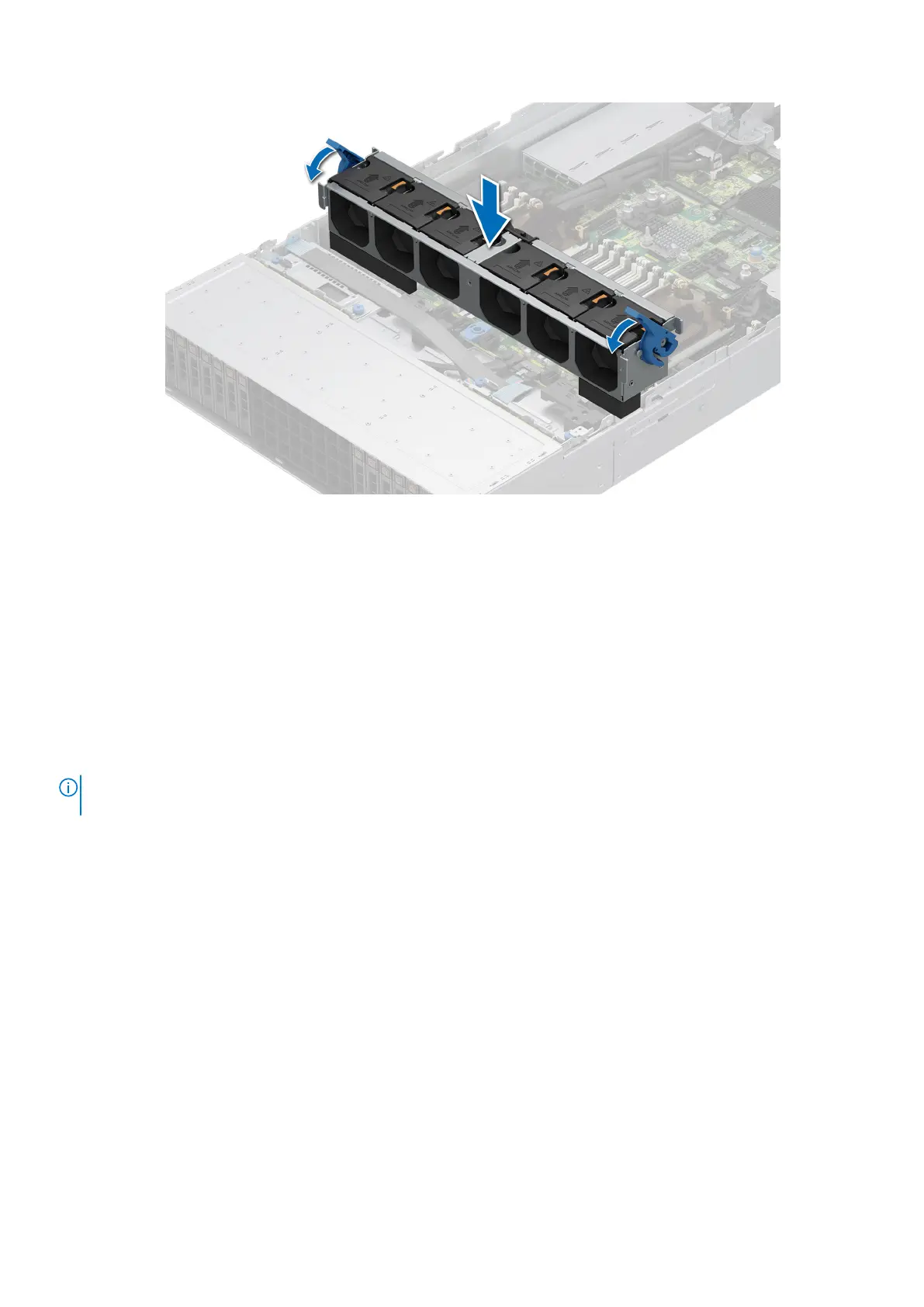

Figure 49. Installing the cooling fan cage assembly
Next steps
1. If removed, install the air shroud or install the GPU air shroud.
2. Follow the procedure listed in After working inside your system.
Removing a cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
NOTE:
The procedure to remove Standard (STD), High Performance Silver (HPR) grade, or High Performance Gold (VHP)
grade fans are the same.
Steps
Press the orange release tab and lift the cooling fan to disconnect the fan from the connector on the system board.
100
Installing and removing system components

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
