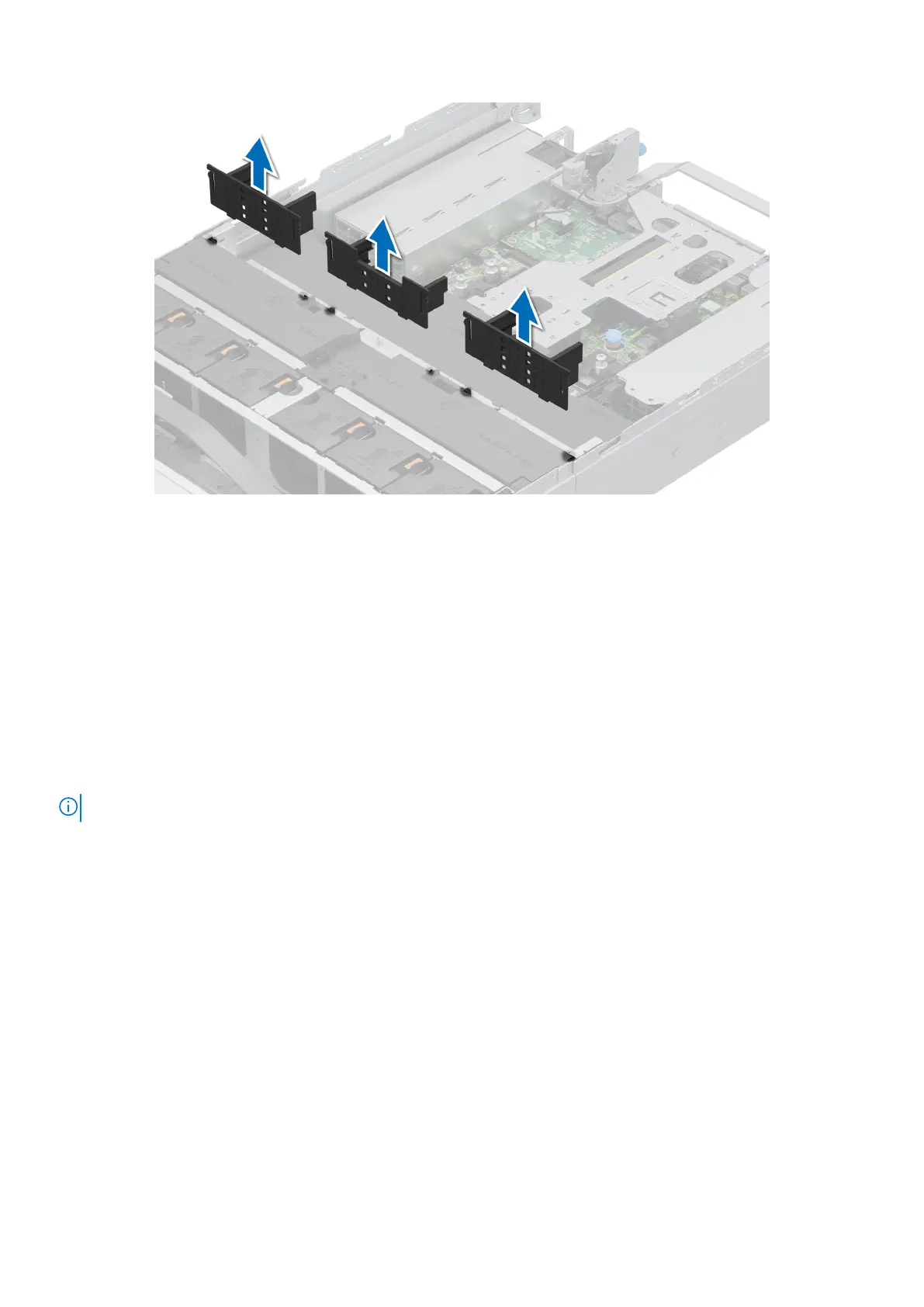

Figure 40. Removing the GPU air shroud filler

Next steps

1. Replace the GPU air shroud filler.

Installing the GPU air shroud filler

Prerequisites

1. Follow the safety guidelines listed in the Safety instructions.

2. Follow the procedure listed in Before working inside your system.

3. Remove the GPU air shroud top cover.

4. If required, remove the full length expansion card risers.

NOTE: The GPU air shroud filler must be installed, if single-width GPU card or empty riser is used.

Steps

Align and install the filler into the slots on the GPU air shroud.

Installing and removing system components
