Dell PowerEdge R760 User Manual

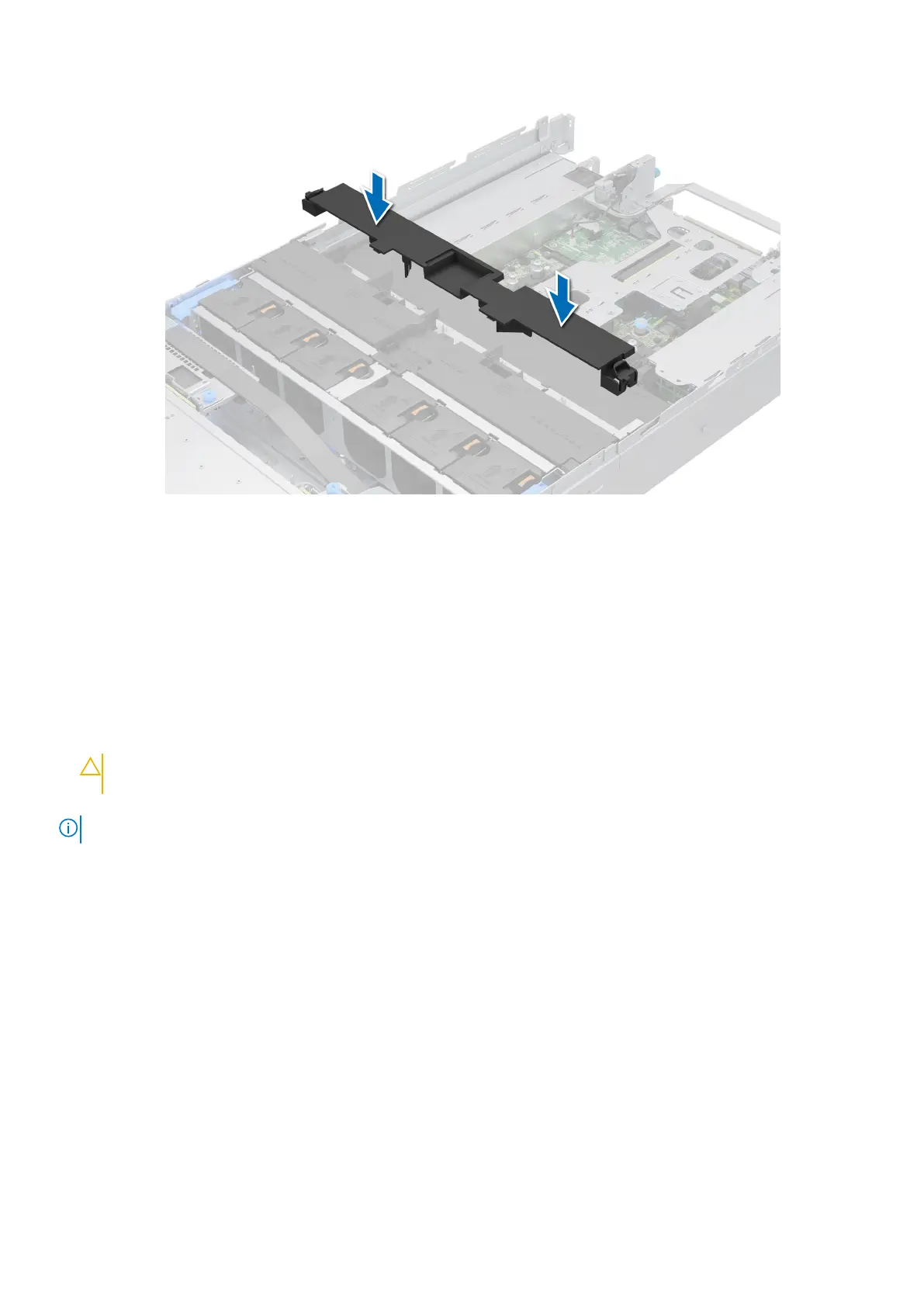

Figure 39. Installing the GPU air shroud top cover
Next steps
1. Follow the procedure listed in After working inside your system.
Removing the GPU air shroud filler
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
CAUTION:
Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
3. Remove the GPU air shroud top cover.
NOTE: The GPU air shroud filler must be removed to avoid interference with full length double-width GPU card installation.
Steps
Hold and lift the filler from the GPU air shroud.
90
Installing and removing system components

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
