Dell PowerEdge R760 User Manual

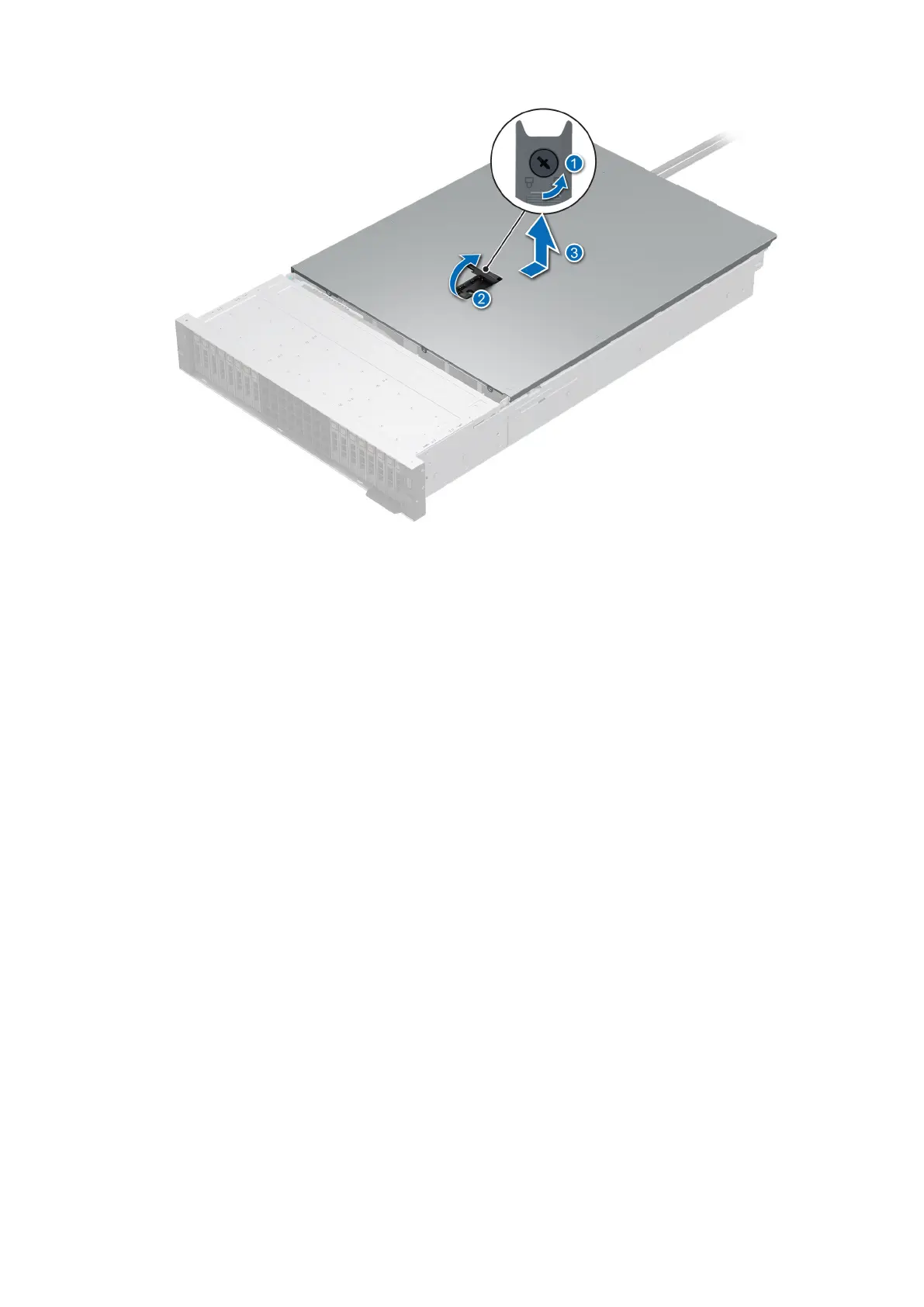

Figure 32. Removing the system cover
Next steps
1. Replace the system cover.
Installing the system cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Ensure that all internal cables are connected and routed properly, and no tools or extra parts are left inside the system.
Steps
1. Align the tabs on the system cover with the guide slots on the system and slide the system cover.
2. Close the system cover release latch.
3. Using a 1/4-inch flat head or Phillips #2 screwdriver, rotate the lock clockwise to the lock position.
Installing and removing system components
83

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
