Inside the system

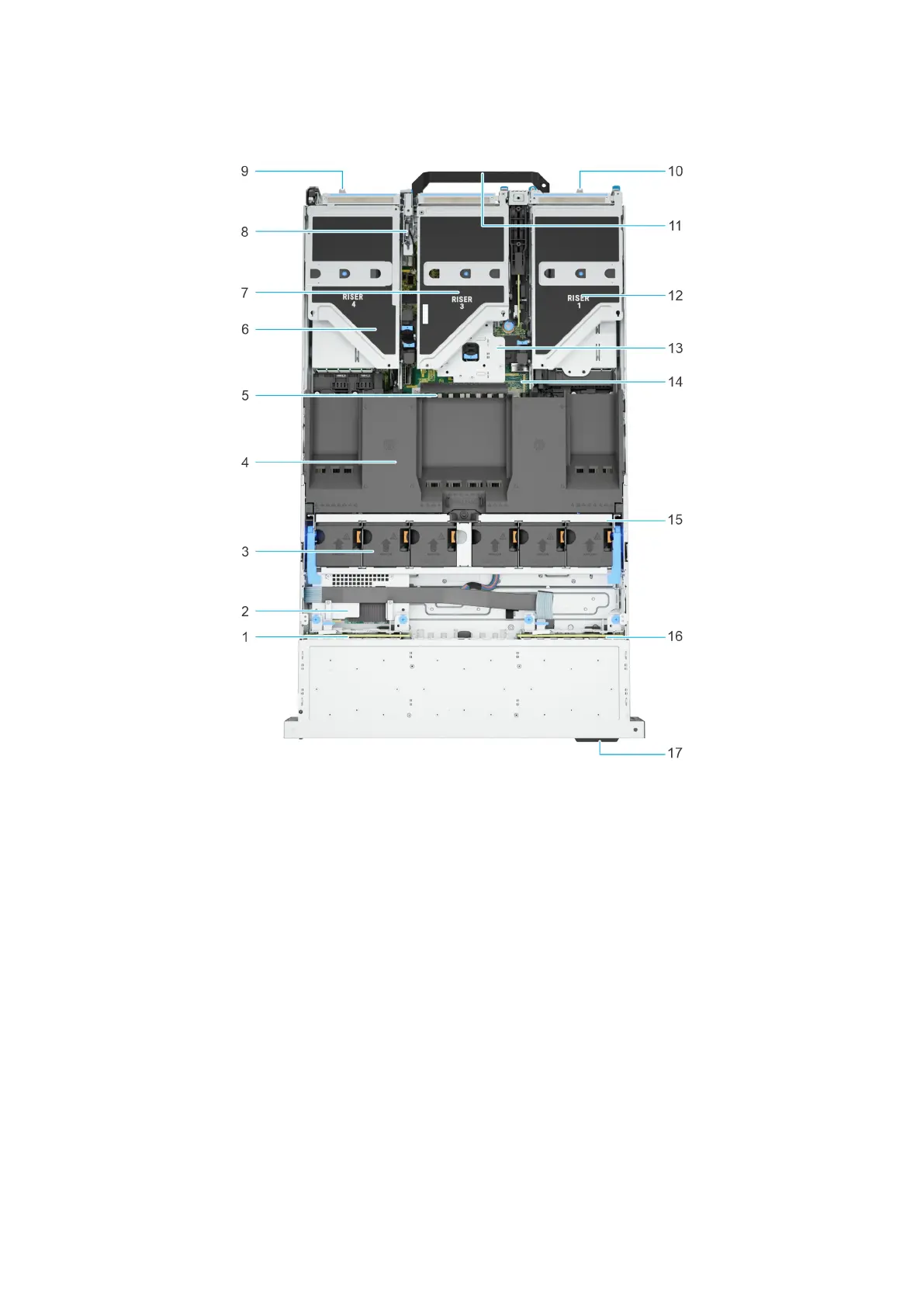

Figure 12. Inside the system

Backplane 2. Rear mounting front PERC module

3. Cooling fans 4. Air shroud

5. Memory DIMM sockets 6. Expansion riser 4

7. Expansion riser 3 8. Intrusion switch module

9. Power supply unit (PSU2) 10. Power supply unit (PSU1)

11. Rear handle 12. Expansion riser 1

13. Expansion riser 2 14. System board

15. Cooling fan cage assembly 16. Backplane

17. Express Service Tag

18 System overview

Questions and Answers:

Need help?

Do you have a question about the Dell PowerEdge R760 and is the answer not in the manual?

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
