Dell PowerEdge R760 User Manual

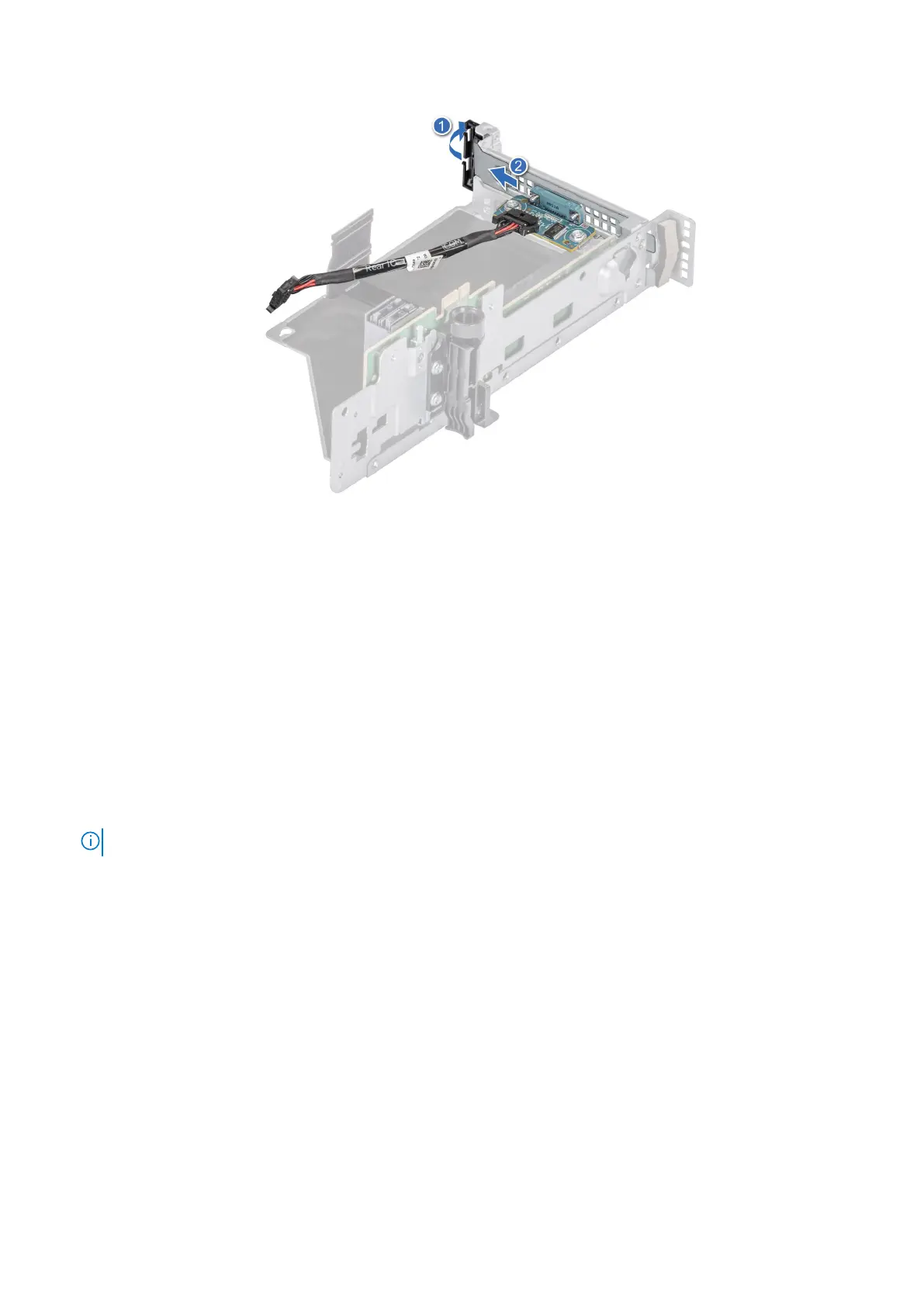

Figure 211. Removing the Serial COM port
5. Install the filler bracket if not replacing the serial COM port.
Next steps
1. Replace the serial COM port.
Installing the serial COM port
The procedure to install serial COM port to Riser 3 or 4 is same.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
NOTE: The serial COM port is supported only in slot 4 or slot 8 of the expansion card riser.
4. Remove expansion card riser.
5. If required, remove PCIe card from slot 7.
Steps
1. Open the latch on the expansion card riser and remove the filler bracket from the expansion card riser.
2. Slide the serial COM port into the expansion card riser and close the latch.
Installing and removing system components
267

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
