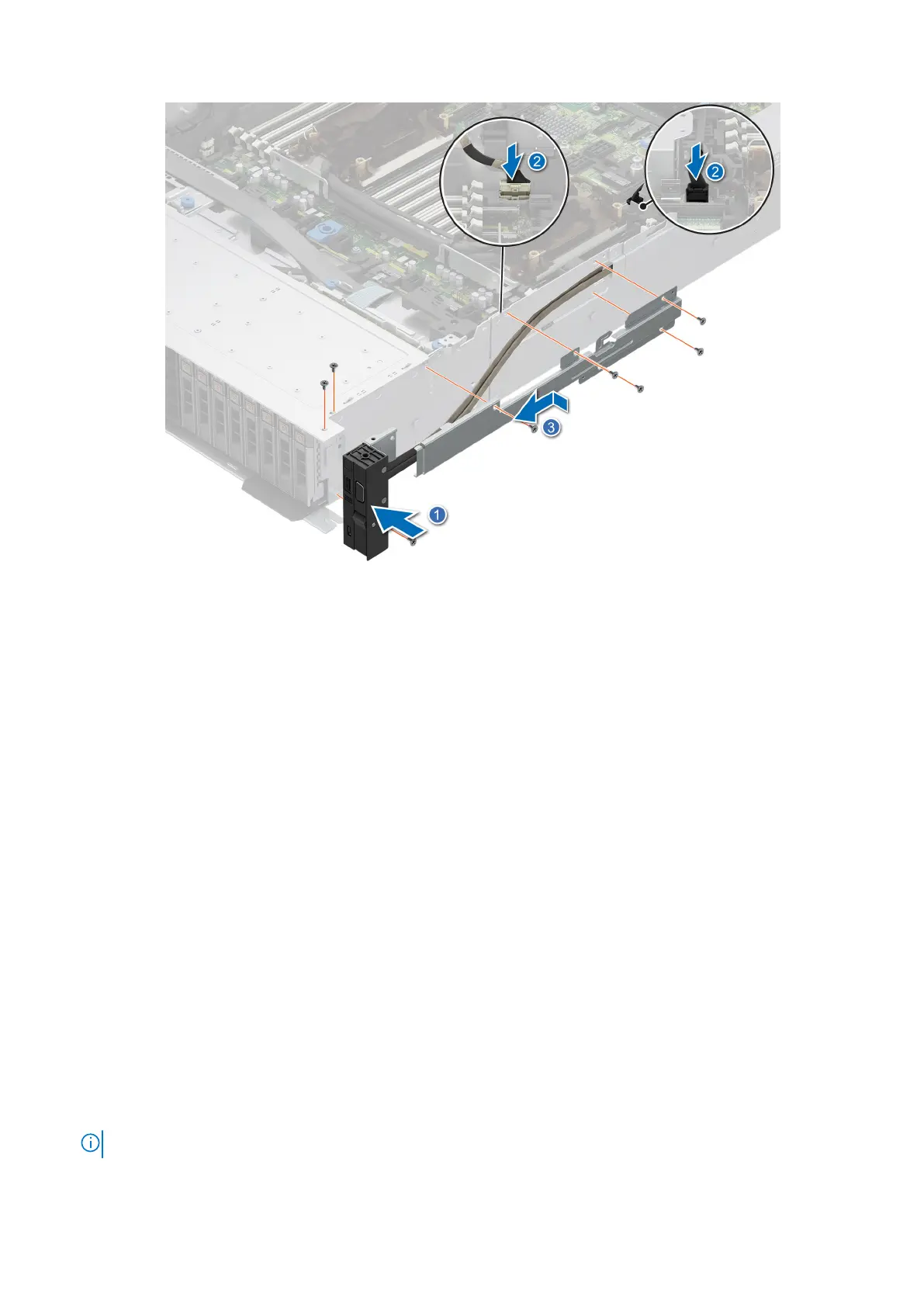

Figure 254. Installing the right control panel
Next steps
1. Install the side wall bracket.
2. Install the cooling fan cage assembly.
3. Install the drive backplane cover.
4. If removed, install the air shroud or install the GPU air shroud
5. Follow the procedure listed in After working inside your system.
Removing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the drive backplane cover.
4. If installed, remove the air shroud or remove the GPU air shroud.
5. Remove the cooling fan cage assembly.
6. Remove the side wall bracket.
Steps
1. Using the Phillips #1 screwdriver, remove the screws that secure the left control panel and the cable cover to the system.
2. Remove the cable cover away from the system.
3. Disconnect the control panel cable from the connector on the system board.
4. Holding the cable, slide the left control panel out of the system.
NOTE: Observe the routing of the cable as you remove the left control panel from the system.
Installing and removing system components 303

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
