Dell PowerEdge R760 User Manual

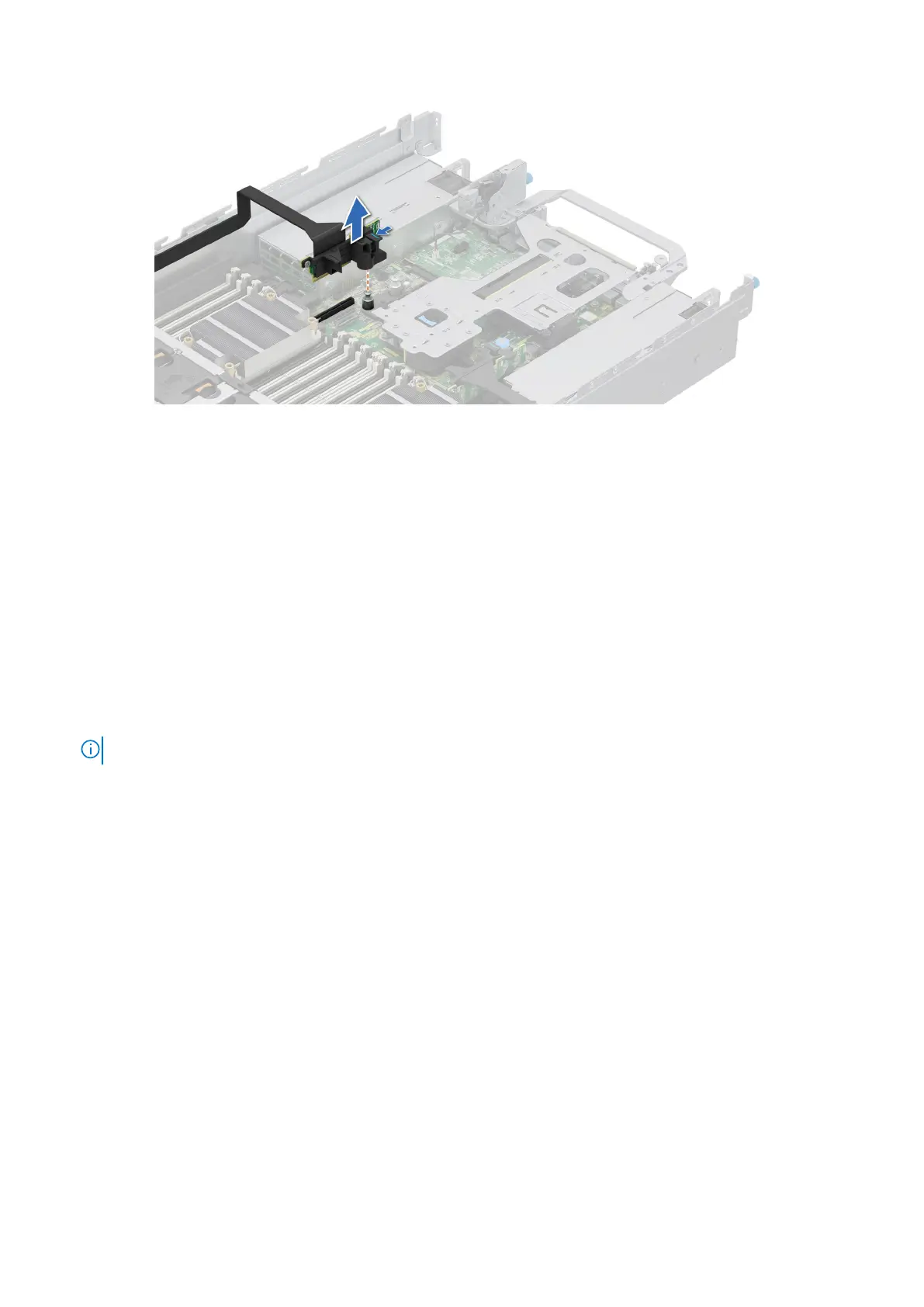

Figure 207. Removing the R4 paddle card
Next steps
1. Replace the paddle cards.
Installing R1 and R4 paddle cards
R1 and R4 paddle cards are supported on 24 x 2.5-inch NVMe Gen4 (passive) configuration only.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
4. Remove the cooling fan cage assembly.
NOTE: Observe the cable routing before disconnecting the cables.
5. Remove the paddle card cable from side wall bracket.
6. Disconnect the paddle card cables from the drive backplane.
Steps
1. Holding the edges, align the hole on the paddle cards with the guides on the system board.
2. Lower the paddle cards into place and press until the paddle card connector is fully seated on the system board connector.
264
Installing and removing system components

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
