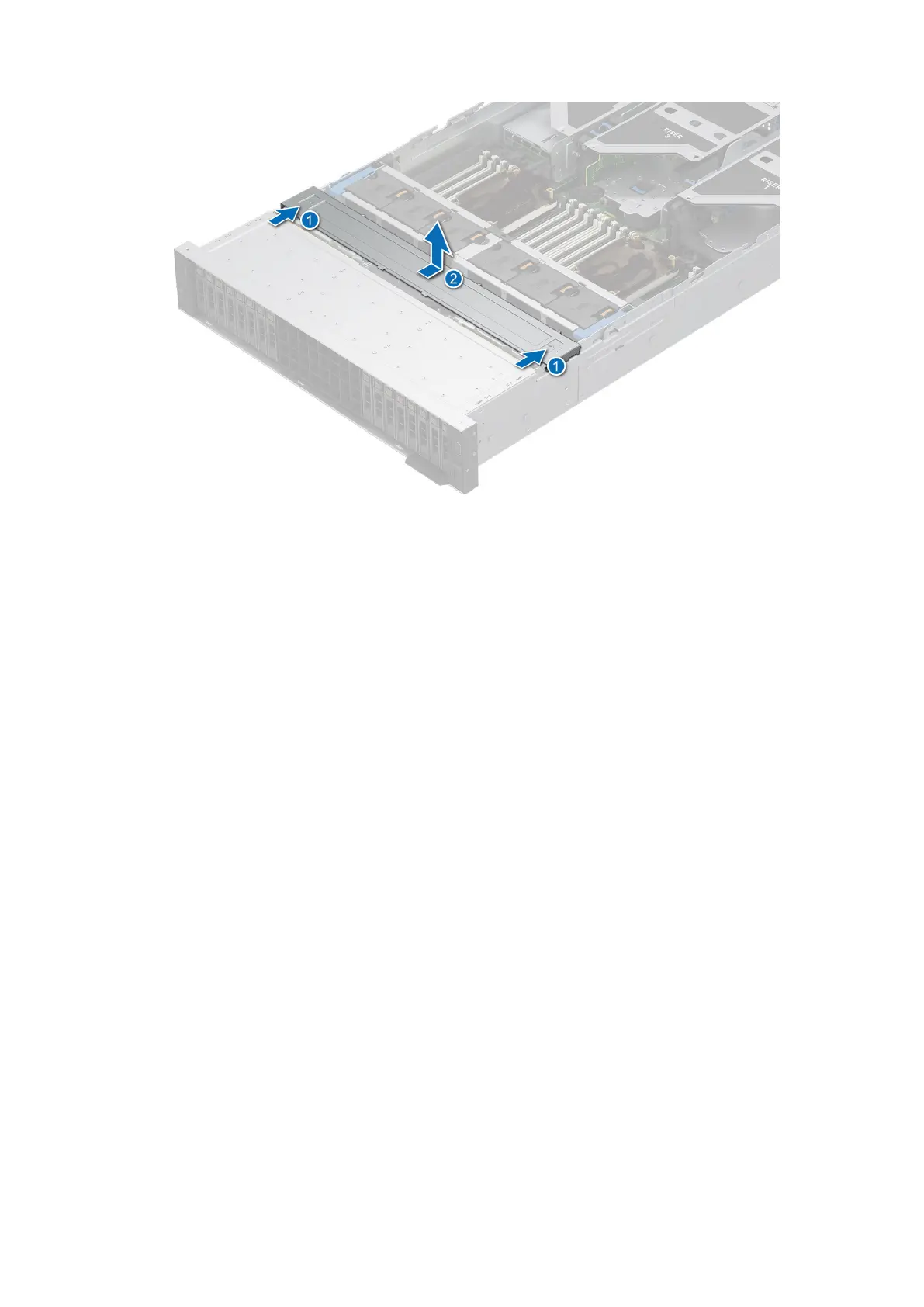

Figure 34. Removing the drive backplane cover

Next steps

1. Replace the drive backplane cover.

Installing the drive backplane cover

Prerequisites

1. Follow the safety guidelines listed in the Safety instructions.

2. Follow the procedure listed in Before working inside your system.

Steps

1. Align the drive backplane cover with the guide slots on the system.

2. Slide the drive backplane cover to the front of the system until the drive backplane cover fits into place.

Installing and removing system components
