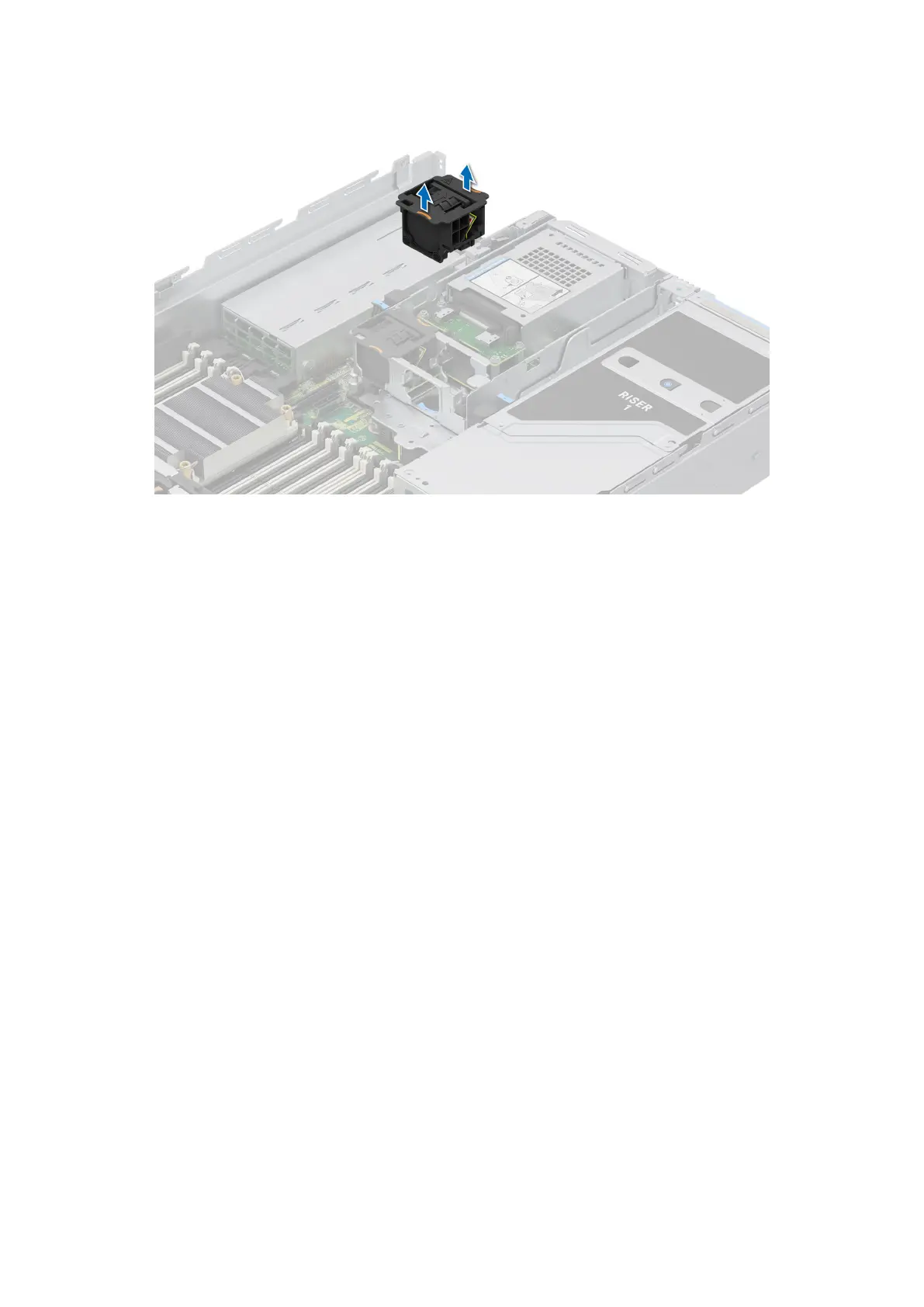

Figure 52. Removing a 2 x 2.5-inch rear drive module cooling fan

Next steps

1. Replace 2 x 2.5-inch rear drive module cooling fan.

Installing a 2 x 2.5-inch rear drive module cooling fan

Prerequisites

1. Follow the safety guidelines listed in the Safety instructions.

2. Follow the procedure listed in Before working inside your system.

3. Remove the 2 x 2.5-inch rear drive module air shroud.

Steps

Align and lower the rear drive module cooling fan into the rear drive module until the fan clicks into place.

Installing and removing system components

103
