Dell PowerEdge R760 User Manual

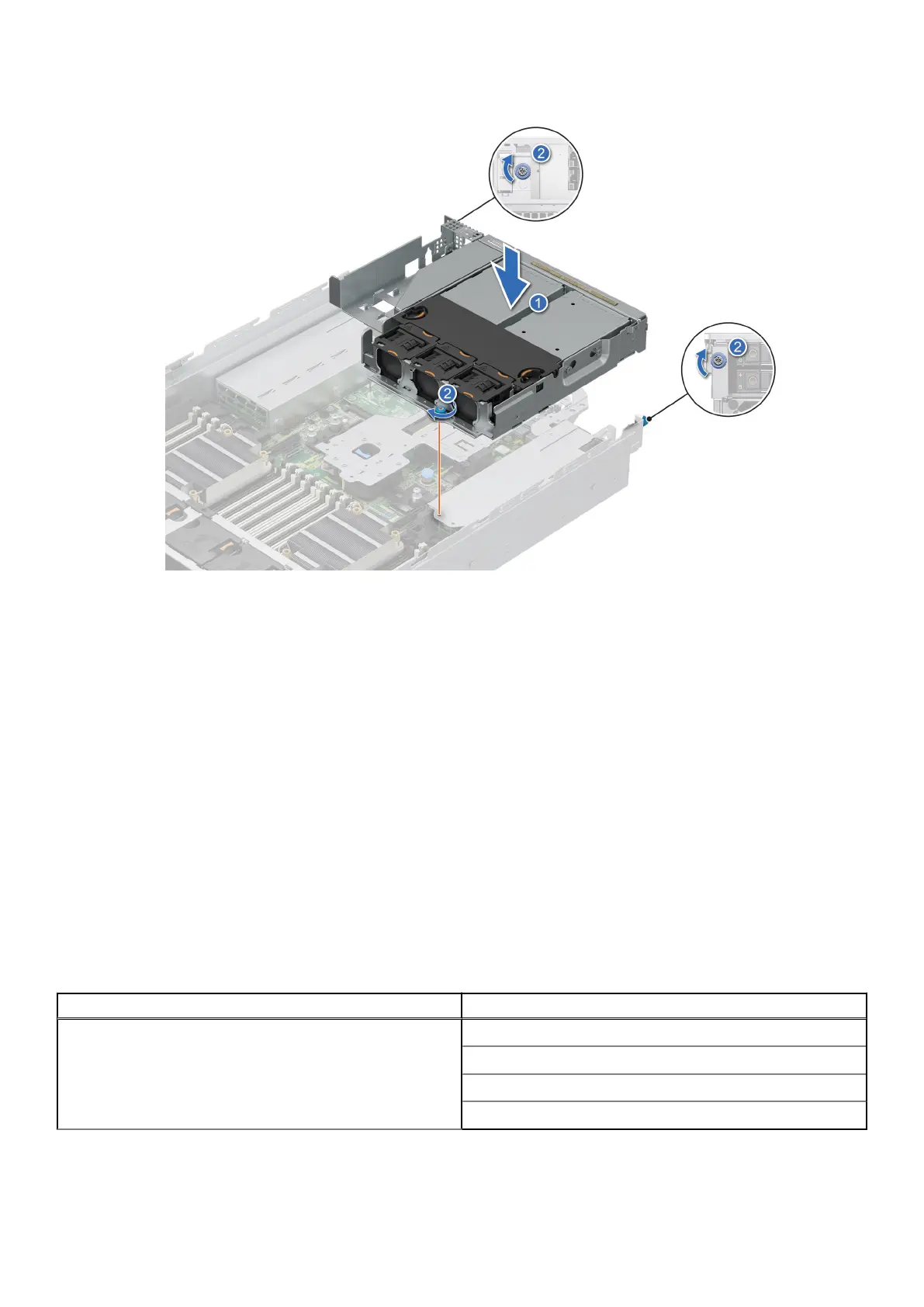

Figure 65. Installing the 4 x 2.5-inch rear drive module
Next steps
1. Connect and route all the cables to the rear drive module.
2. Install the drives.
3. If removed, install the BOSS-N1 module.
4. If removed, install the air shroud.
5. Follow the procedure listed in After working inside your system.
Drive backplane
This is a service technician replaceable part only.
Drive backplane
Depending on your system configuration, the drive backplanes that are supported are listed here:
Table 78. Supported backplane options
System Supported hard drives options
PowerEdge R760
2.5-inch (x 8) NVMe backplane
2.5-inch (x 8) SAS, or SATA backplane
3.5-inch (x 12) SAS or SATA backplane
2.5-inch (x 24) SAS, SATA, or NVMe backplane
116 Installing and removing system components

Dell PowerEdge R760 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (4th Gen)
Memory	Up to 8TB DDR5
Drive Bays	Up to 24 x 2.5" SAS/SATA/NVMe (HDD/SSD)
Power Supply	Dual, hot-plug, redundant power supplies (800W, 1100W, 1400W options)
Network	1 x 1 GbE
RAID Controller	PERC H755, H355
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
