Dell PowerVault TL2000 User Manual

Note: The maximum number of Logical Libraries in a 2U is two.
Note: This menu is only available on libraries with multiple drives.
Note: Whenever there is a hardware configuration change such as drives being
swapped with different form factors (i.e. HH to FH or FH to HH), a library
configuration change is needed. Reconfiguring the library by reassigning the
amount of logical libraries will clear this issue.

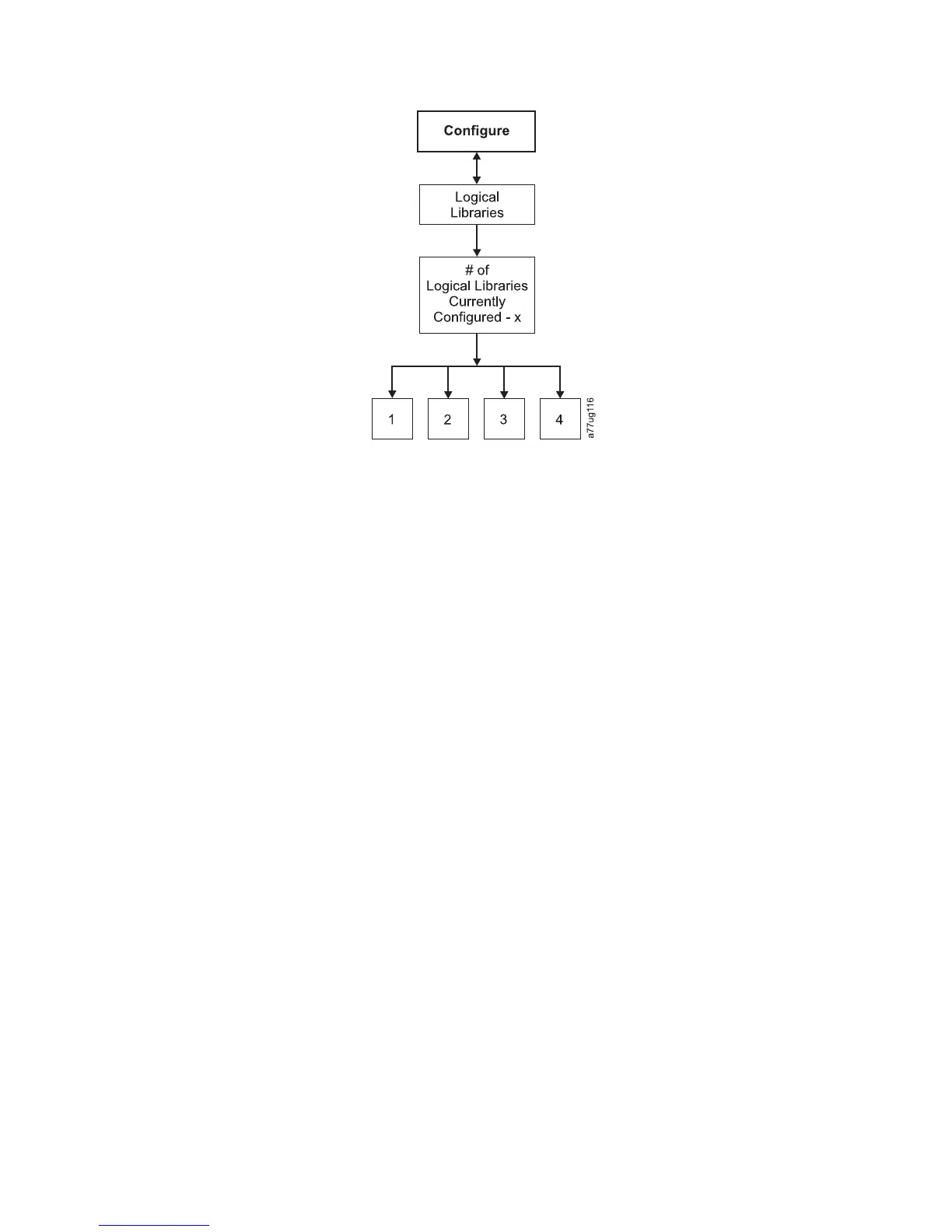

Figure 5-13. Configure: Logical Libraries menu
Chapter 5. Operations 5-19

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
