Removing/Installing/Adding a Tape Drive Sled
There are two types of drive sleds in a TL2000 library (2U library) and a TL4000
library (4U library). The contents of the ship groups are specific to the type of
drive sled.
v Drive sled without ElectroStatic Discharge (ESD) springs (see Figure 10-4) ship
group:
– Drive sled without ESD springs
– Packet of conductive tape to be applied to the drive sled for ESD protection
v Drive sled with ESD springs (see Figure 10-5 on page 10-4) ship group:
– Drive sled with ESD springs
a77ug008

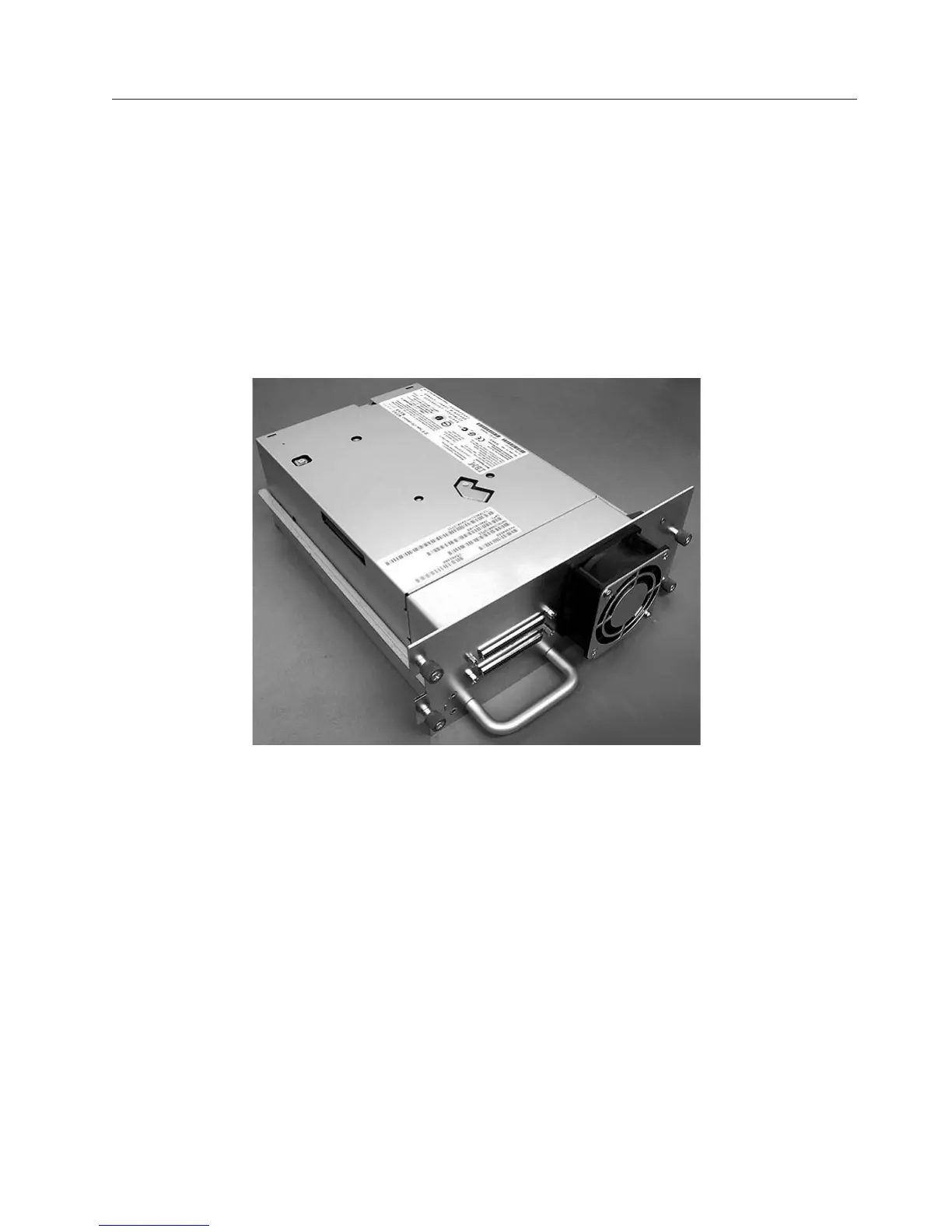

Figure 10-4. Library drive sled without ElectroStatic Discharge (ESD) springs (SCSI sled shown)
Chapter 10. Check, Adjust, Remove, and Replace 10-3

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
