Dell PowerVault TL2000 User Manual

4U Library I/O Station
The I/O Station in a 4U library (see Figure 4-38) is part of the lower left magazine.
To open the I/O Station, select Control → Open I/O Station. The I/O Station will
pop open. To close the I/O Station, gently push it back into the lower left
magazine.
There are finger holes on the back side of the I/O Station (see 1 in Figure 4-39 on
page 4-36) that allow the user to push the cartridges out of the I/O station.
a77ug249

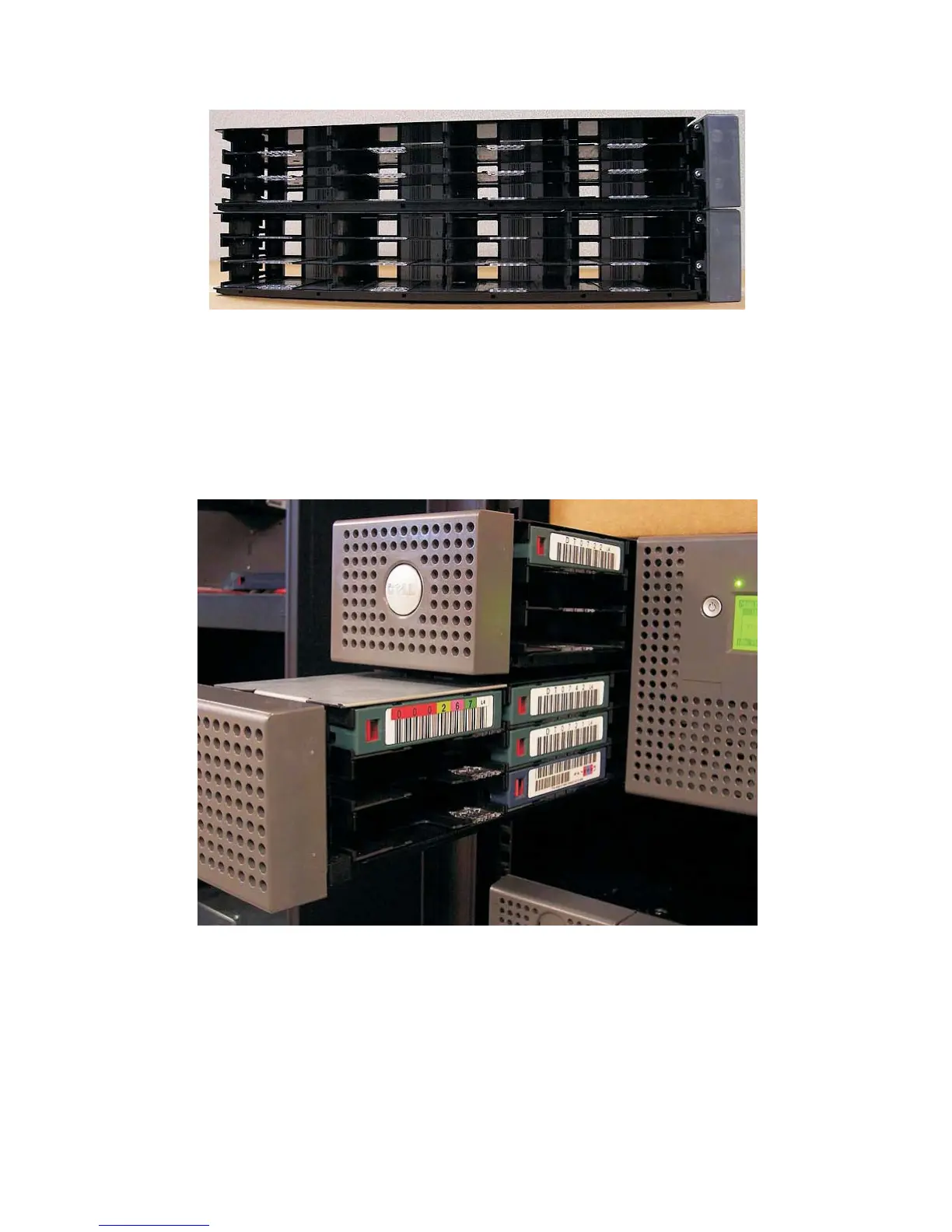

Figure 4-37. 4U library right magazines
a77ug24
6
Figure 4-38. 4U library I/O Station in the lower left magazine
Chapter 4. Installation and Configuration 4-35

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
