Table 5-8. Library Status page elements (continued)
Menu Item Description 2U 4U
1. Right Magazine This displays whether the lower right magazine is "Present" or "Not
Present".
X
2. Left Magazine This displays whether the upper left magazine is "Present" or "Not
Present".
X
2. Right Magazine This displays whether the upper right magazine is "Present" or "Not
Present".
X
Monitor Library: Drive Status
This page provides the following detailed dynamic information about the drive in
the library. No changes can be made from this page. The displayed information
will vary depending on the library model and drive type (SCSI, SAS, or Fibre
Channel). Table 5-9 lists all available elements on the Drive Status page. An "X"
indicates that the element displays for the specified drive type.
Table 5-9. Drive Status page elements
Menu Item Description 2U Library 4U Library
SCSI Fibre SAS SCSI Fibre SAS
Status This is the current status of the drive. A
checkmark indicates that the drive is operating
properly. An exclamation point indicates that the
drive is operating but has a problem. An X
indicates that the drive is not operational because
of a serious problem.
XX X X X X
Cartridge in
Drive
This is the serial number of the cartridge
currently in the drive. If the drive does not
contain a cartridge, "None" is displayed.
XX X X X X
Drive Error
Code
If the drive has generated an error code, it is
displayed here. If the drive has not generated an
error, "No Error" will be displayed.
XX X X X X
Cooling Fan
Active
This displays whether the drive's cooling fan is
ON (checked) or OFF.
XX X X X X
Drive
Activity
This indicates whether or not the drive is
operating.
XX X X X X
Port A
Status
This indicates whether Port A is logged on or out. X X X X

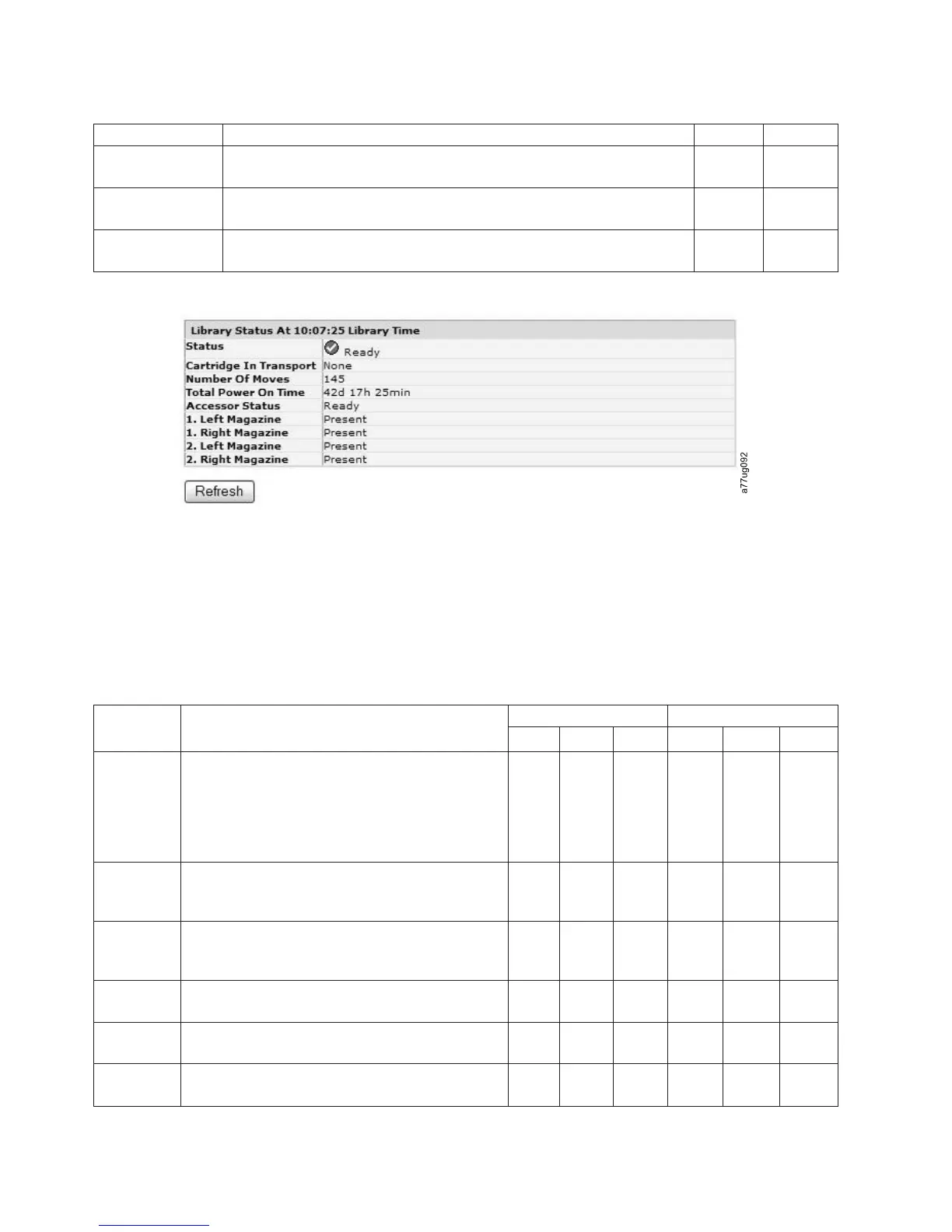

Figure 5-28. The 4U library Monitor Library: Library Status page
5-38 Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide
