6. Install the library mounting brackets (1) as shown on the 2U library on each
side of the library using the screw that was removed from your library and an
additional short, counter-sunk screw included in the rack kit. (The 4U rack
anchors and mounting brackets are similar.)
7. With library rack anchors and mounting brackets installed, slide the library
onto the rails (as shown in Figure 4-9 and Figure 4-10 on page 4-10). When the
library stops, gently push the library to lock the anchors installed on each side
of the library to the rails and until the mounting brackets are flush with the
vertical rack rails.
a77ug012
1
2

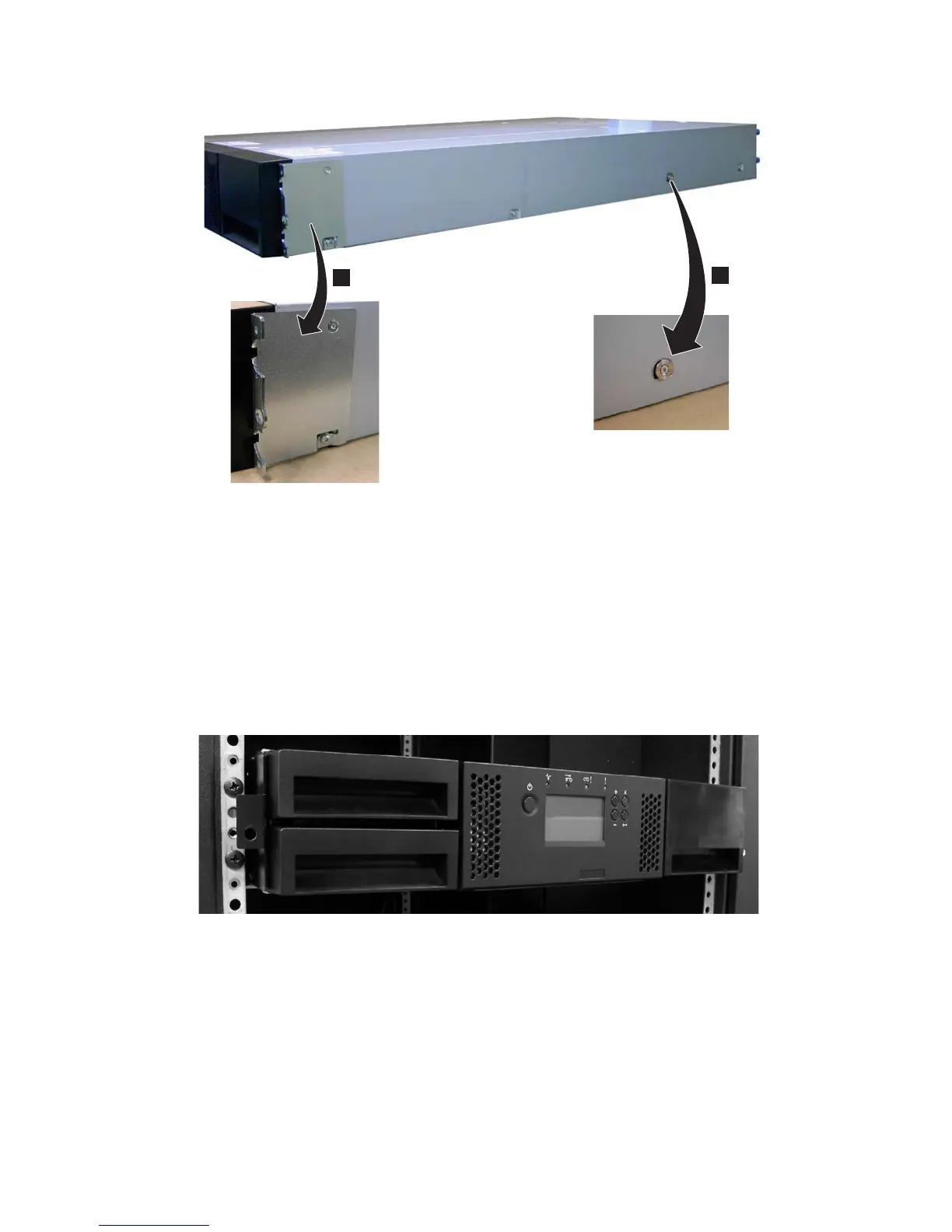

Figure 4-8. 2U library rack anchors and mounting brackets
a77ug127
Figure 4-9. Sliding the 2U library into the rack
Chapter 4. Installation and Configuration 4-9
