b. Push the end of a straightened paper clip into the access hole for each
magazine at the back of the library. DO NOT push the paper clip in more
than ½ inch. While holding the paper clip, have a second person pull the
magazine out from the front of the unit.
Note: To prevent dropping the magazine, support both ends of the
magazine before it clears the front edge of the library.
a77ug024

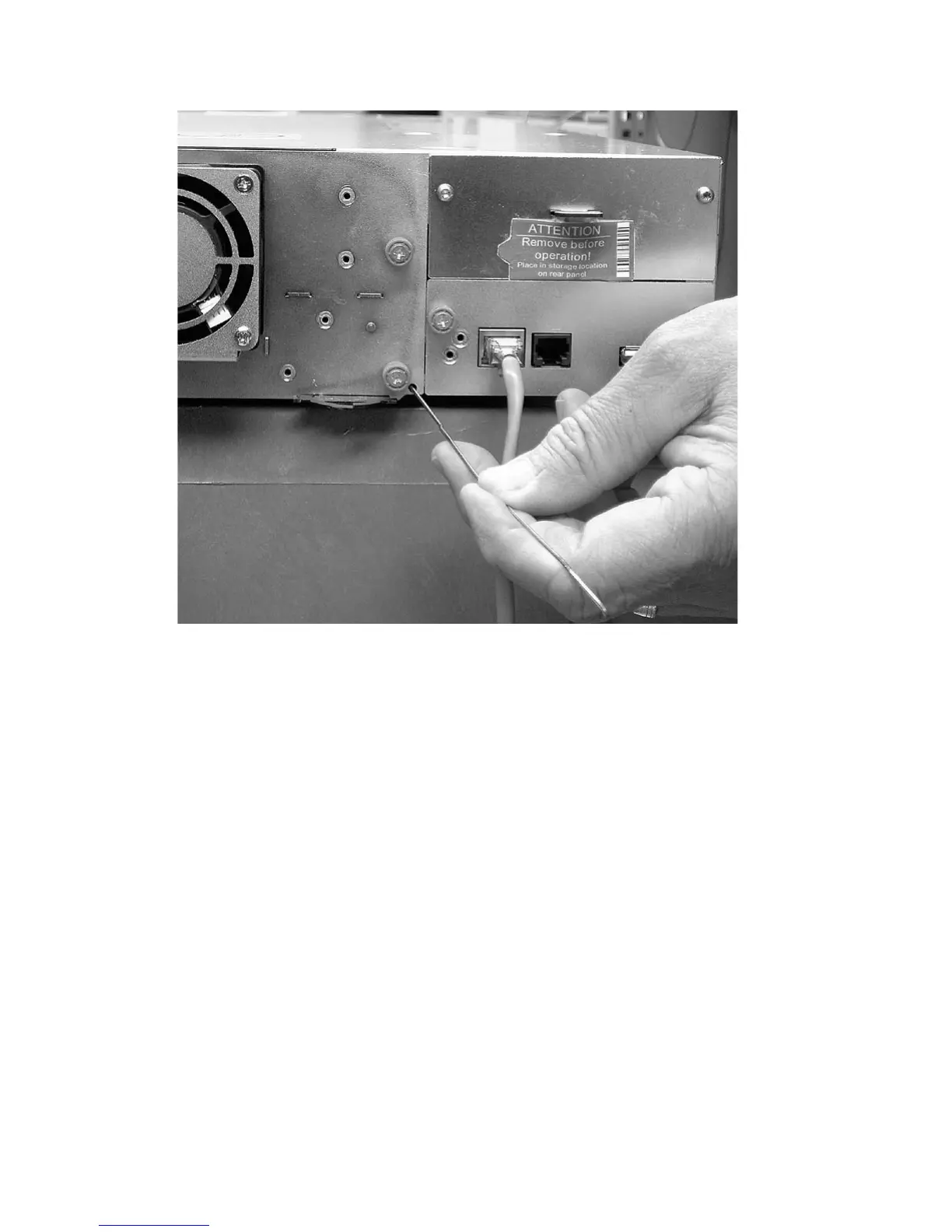

Figure 10-22. Access hole for the right magazine (facing rear of library)
10-24 Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
