3. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2280 solid-state drive
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

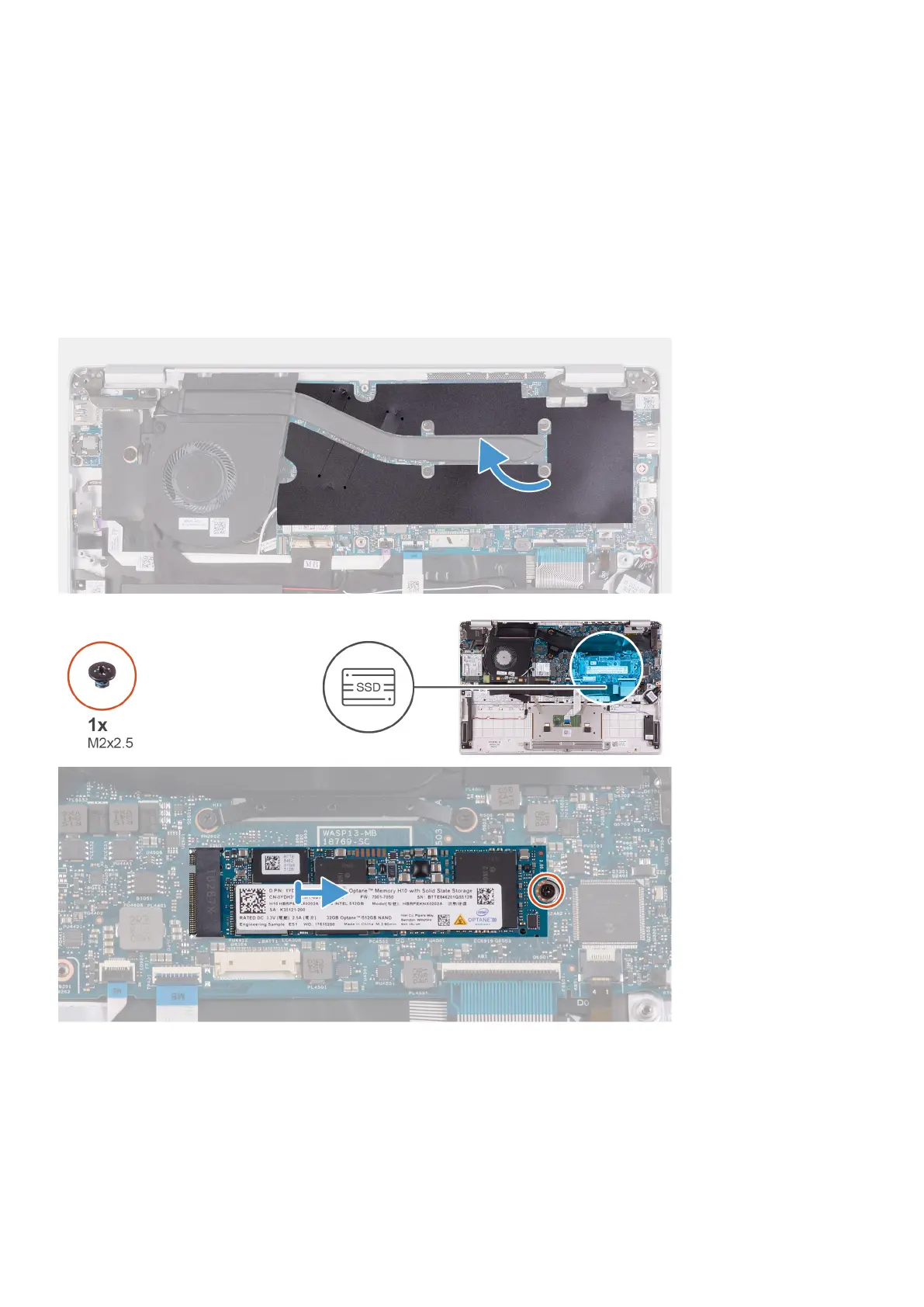

The following image indicates the location of the solid-state drive and provides a visual representation of the removal procedure.
1. Peel the mylar tape that secures the heat sink to the system board.
2. Remove the screw (M2x2.5) that secures the solid-state drive to the system board.
3. Slide and remove the solid-state drive from the solid-state drive slot on the system board.
Installing the M.2 2280 solid-state drive
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
