1. Peel off the tape securing the display cable to the back-cover.
2. Peel the display cable off the display back-cover.
Installing the display cable
If you are replacing a component, remove the existing component before performing the installation procedure.

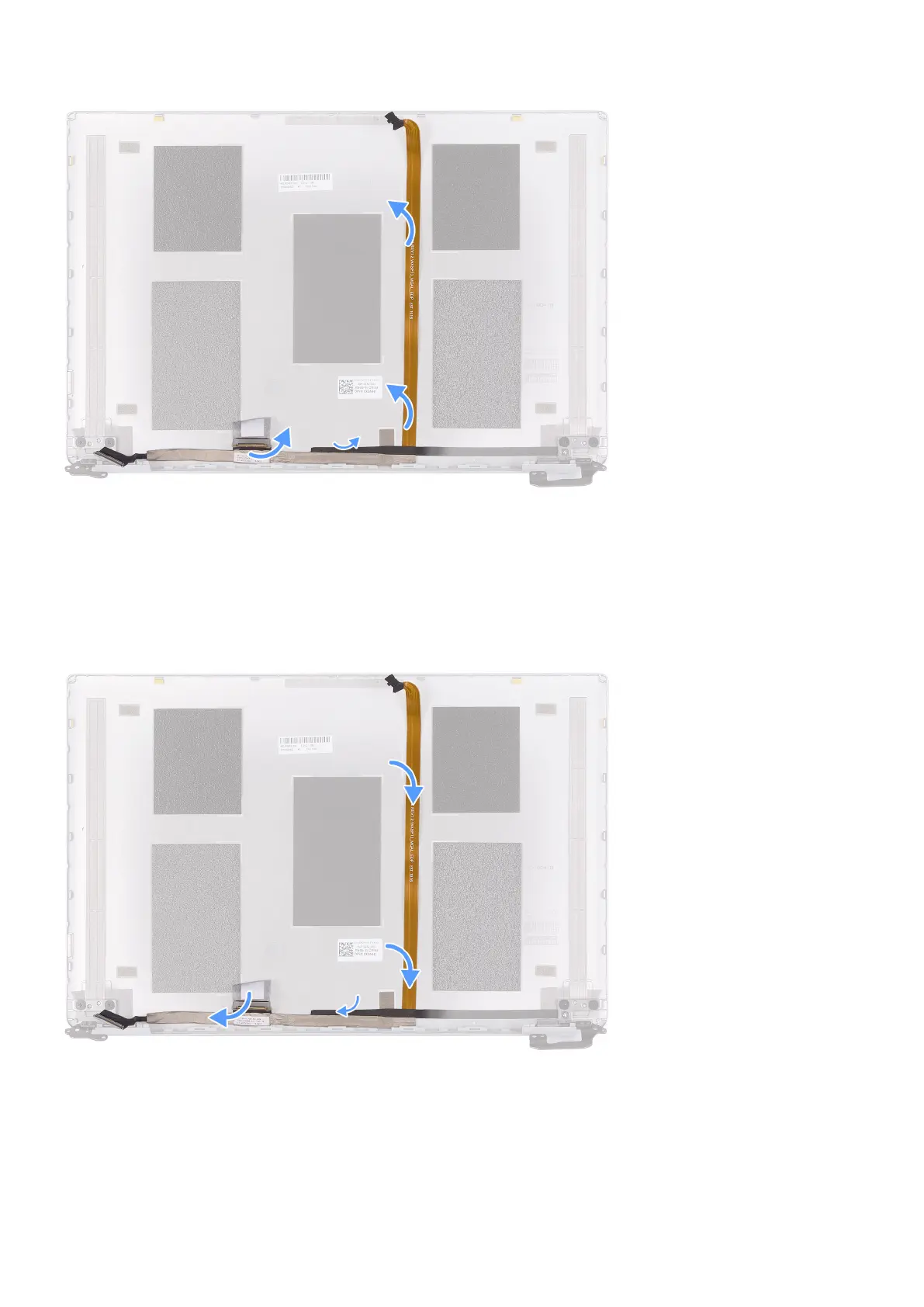

The following image indicates the location of display cable and provides a visual representation of the installation procedure.
1. Adhere the tape securing the display cable to the back-cover.
2. Adhere the display cable to the display back-cover.
1. Install the display bezel.
2. Install the display panel.
3. Install the display assembly.
4. Install the battery.
58
Removing and installing components
