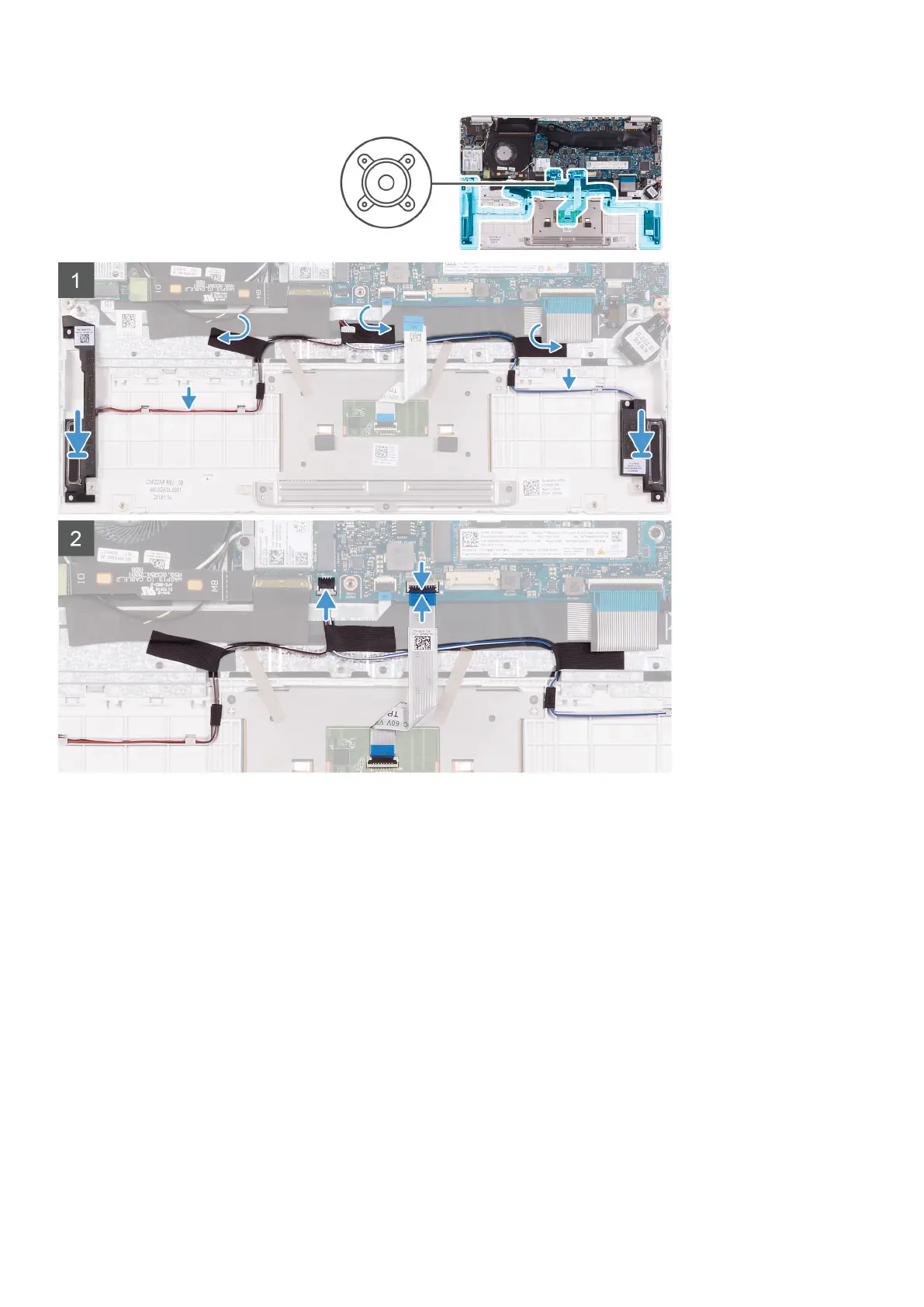

1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Adhere the tapes that secure the speaker cable to the palm-rest and keyboard assembly.
4. Connect the speaker cable to the system board.
5. Connect the touchpad cable to the system board and close the latch to secure the cable.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
WLAN card
Removing the WLAN card
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
26
Removing and installing components
