1. Align and place the palm-rest and keyboard assembly on the display assembly.
2. Using the alignment posts, close the display hinges.

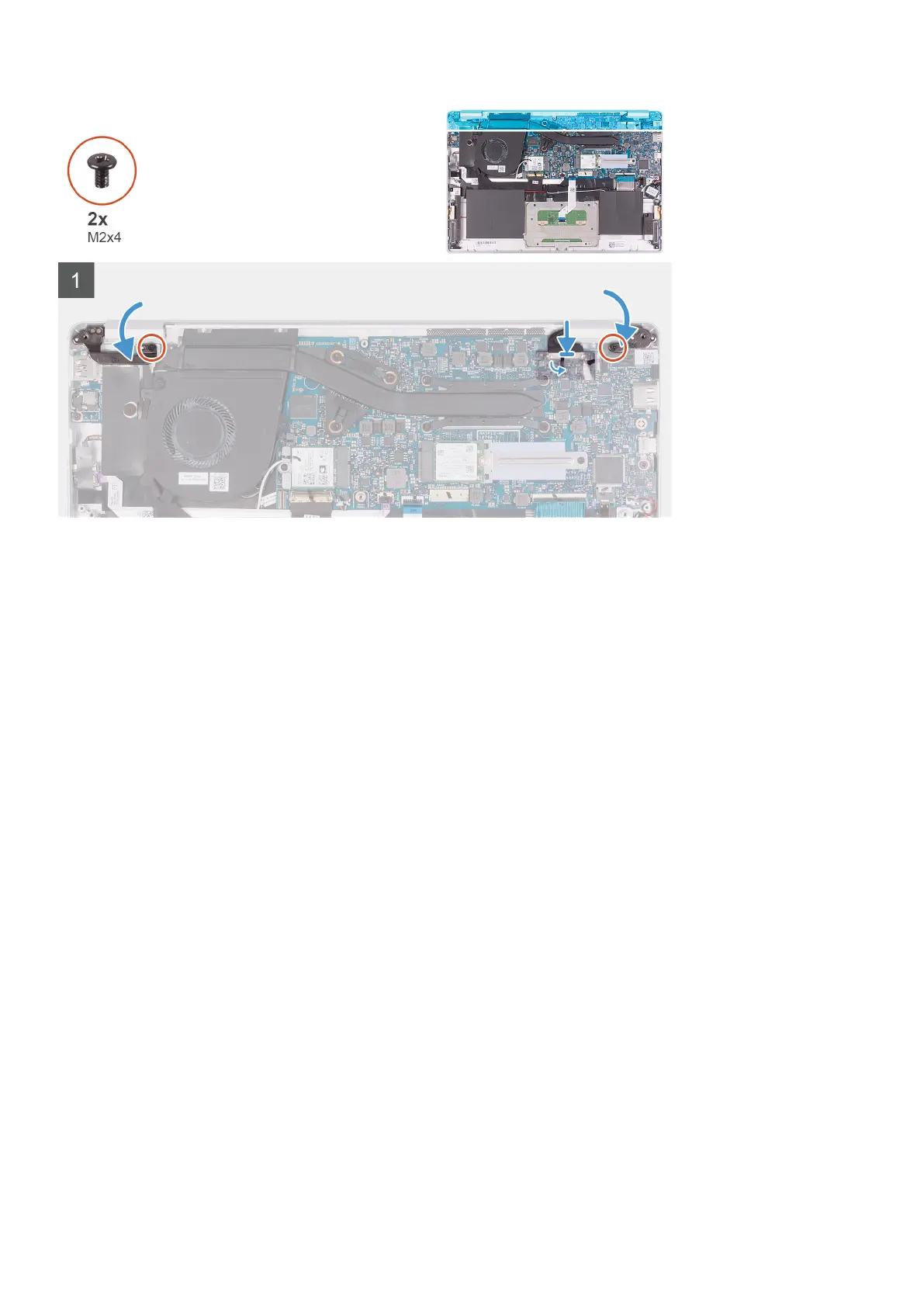

3. Replace the two screws (M2x4) that secures the left and right display hinge to the I/O board and palm-rest and keyboard assembly.
4. Connect the display cable on to the connector on the system board and adhere the tape that secures the display cable to the system
board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the display assembly.
The following image indicates the location of power-adapter port and provides a visual representation of the removal procedure.
