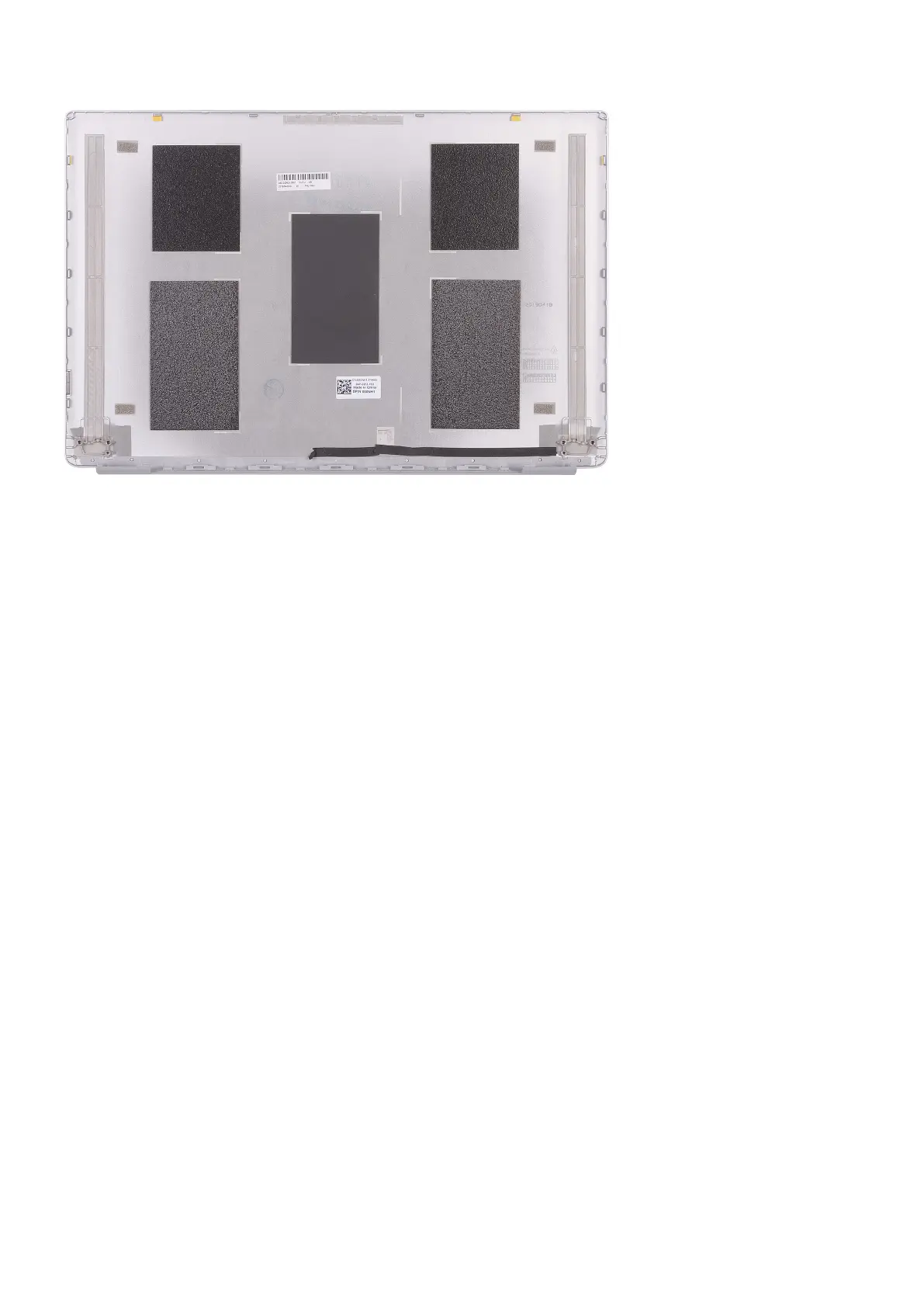

Place the display back-cover on a flat surface.
1. Install the camera.
2. Install the display cable.
3. Install the display panel.
4. Install the display hinges.
5. Install the display bezel.
6. Install the display assembly.
7. Install the WLAN card.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the speakers.
6. Remove the system board.
7. Remove the display assembly.
8. Remove the power button with fingerprint reader or power-button board, whichever applicable.
9. Remove the power-adapter port.
10. Remove the touchpad.
The following image indicates the palm-rest and keyboard assembly and provides a visual representation of the removal procedure.
