After performing the steps in the pre-requisites, we are left with the palm-rest and keyboard assembly.
NOTE:
System board can be removed with heatsink attached.
Installing the palm-rest and keyboard assembly
If you are replacing a component, remove the existing component before performing the installation procedure.

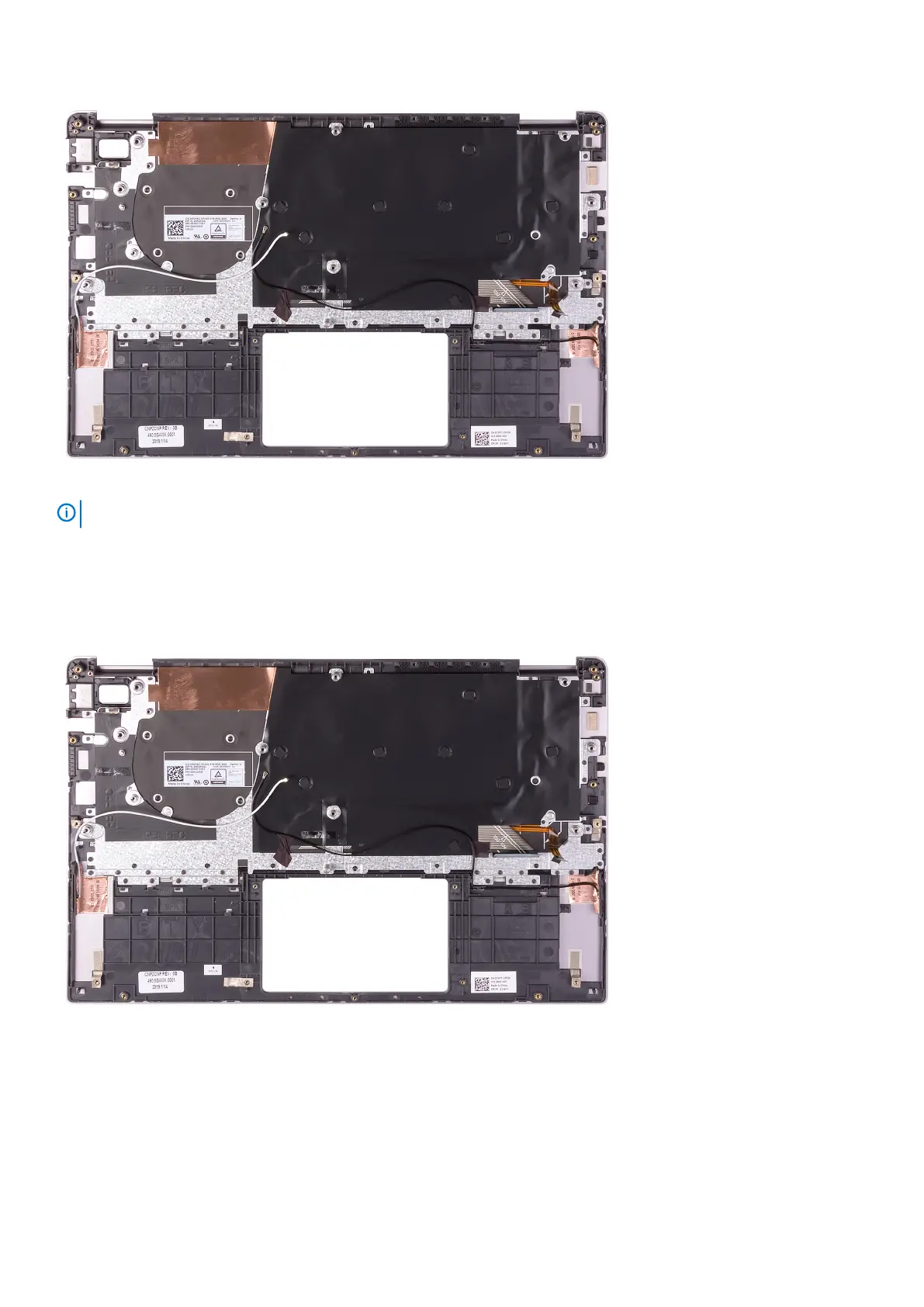

The following image indicates the palm-rest and keyboard assembly and provides a visual representation of the installation procedure.
Place the palm-rest and keyboard assembly on a flat surface.
1. Install the touchpad.
2. Install the power-adapter port.
3. Install the power button with fingerprint reader or power-button board, whichever applicable.
4. Install the display assembly.
5. Install the system board.
6. Install the speakers.
7. Install the WLAN card.
