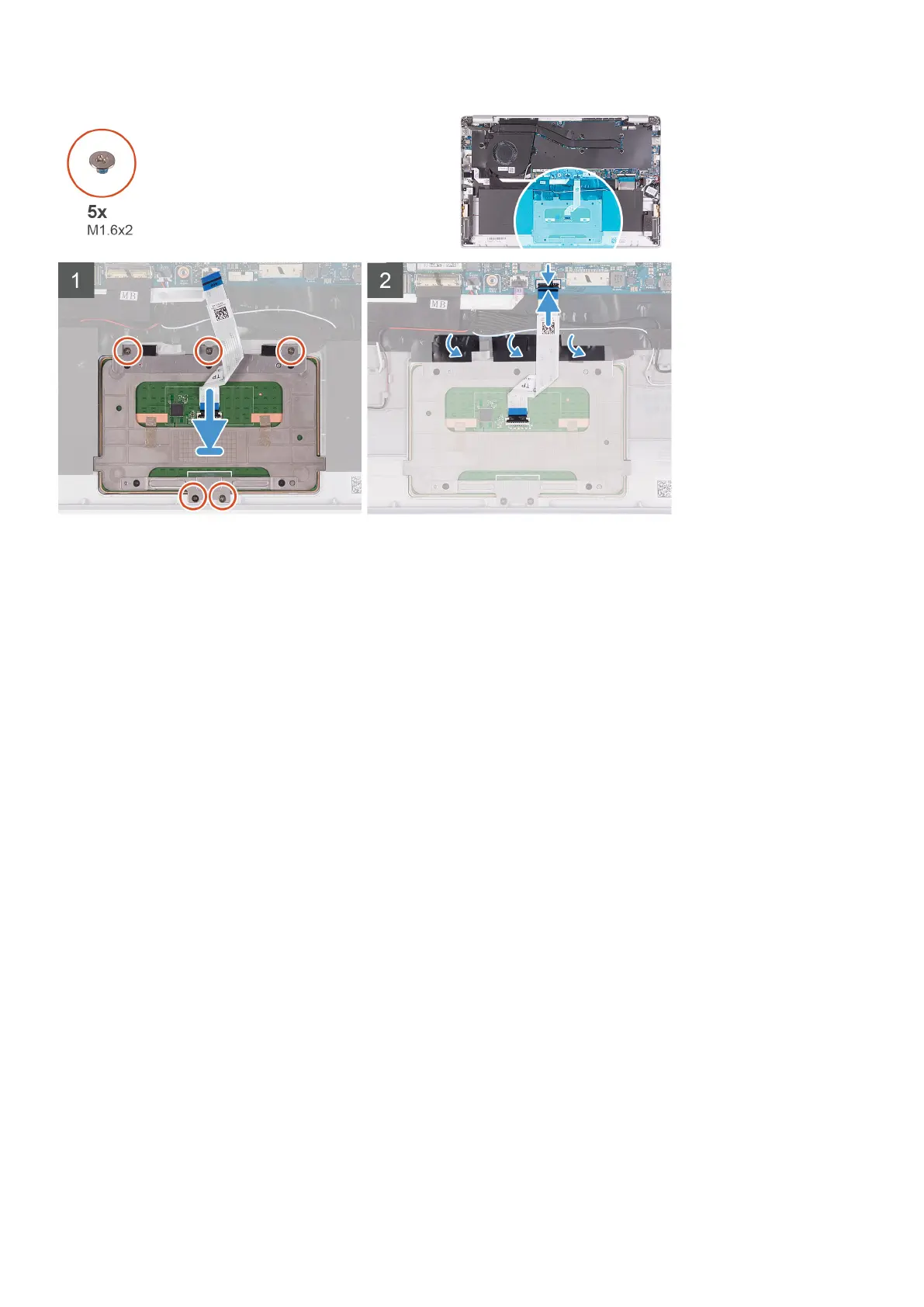

1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
2. Replace the two (M1.6x2) screws that secure the touchpad to the palm-rest and keyboard assembly.
3. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.
4. Replace the three (M1.6x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
5. Slide the touchpad cable into its connector on the system board and close the latch to secure the cable.
6. Adhere the tape that secures the touchpad to the palm-rest and keyboard assembly.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
The following image indicates the location of display assembly and provides a visual representation of the removal procedure.
