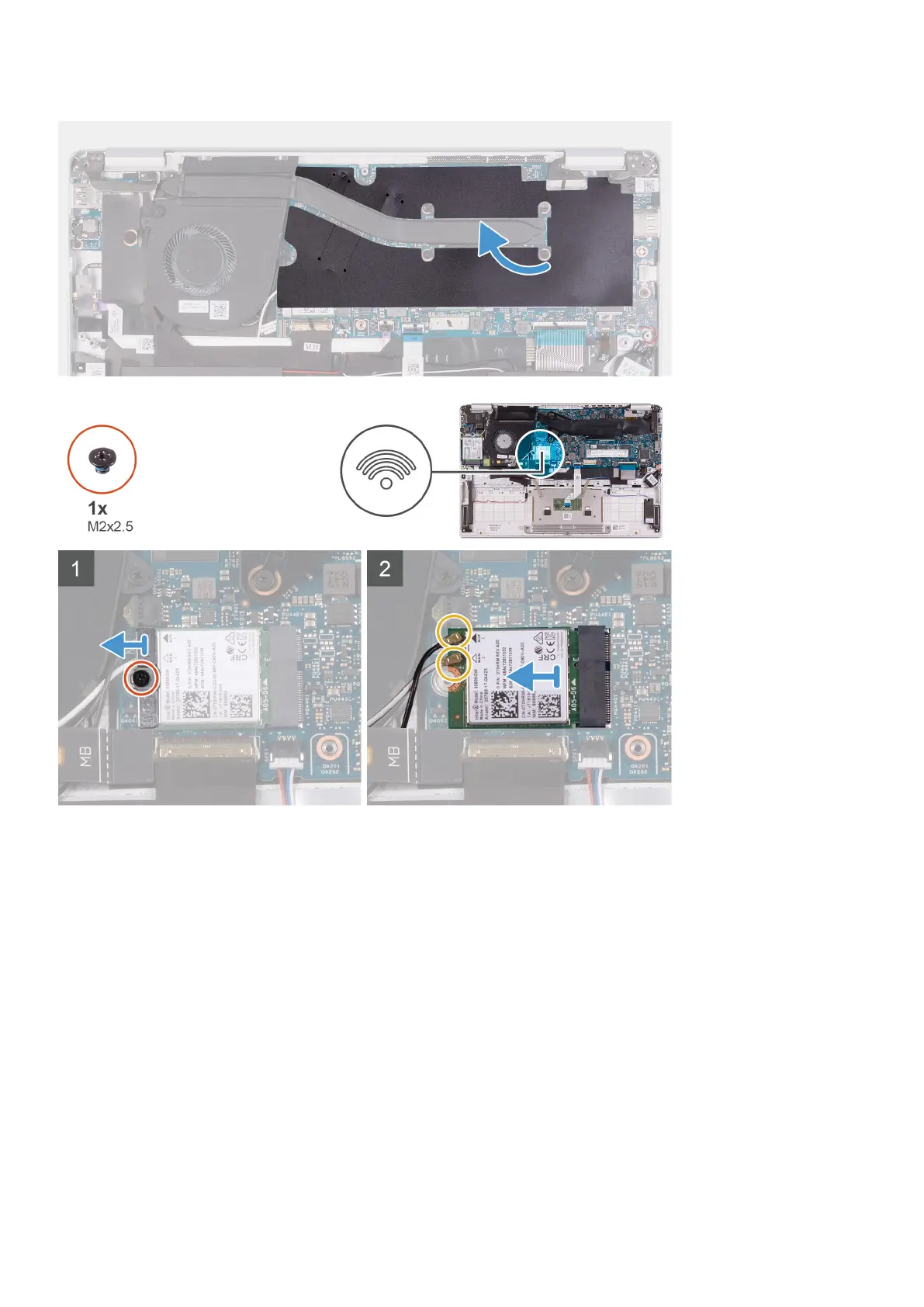

The following image indicates the location of WLAN card and provides a visual representation of the removal procedure.
1. Peel the mylar tape that secures the heat sink to the system board.
2. Remove the screw (M2x2.5) that secures the WLAN-card bracket to the WLAN card and lift the WLAN-card bracket off the WLAN
card.
3. Disconnect the antenna cables from the WLAN card.
4. Slide and remove the WLAN card from the WLAN-card slot.
Installing the WLAN card
If you are replacing a component, remove the existing component before performing the installation procedure.
The following image indicates the location of WLAN card and provides a visual representation of the installation procedure.
Removing and installing components
27
