Installing the display bezel
If you are replacing a component, remove the existing component before performing the installation procedure.

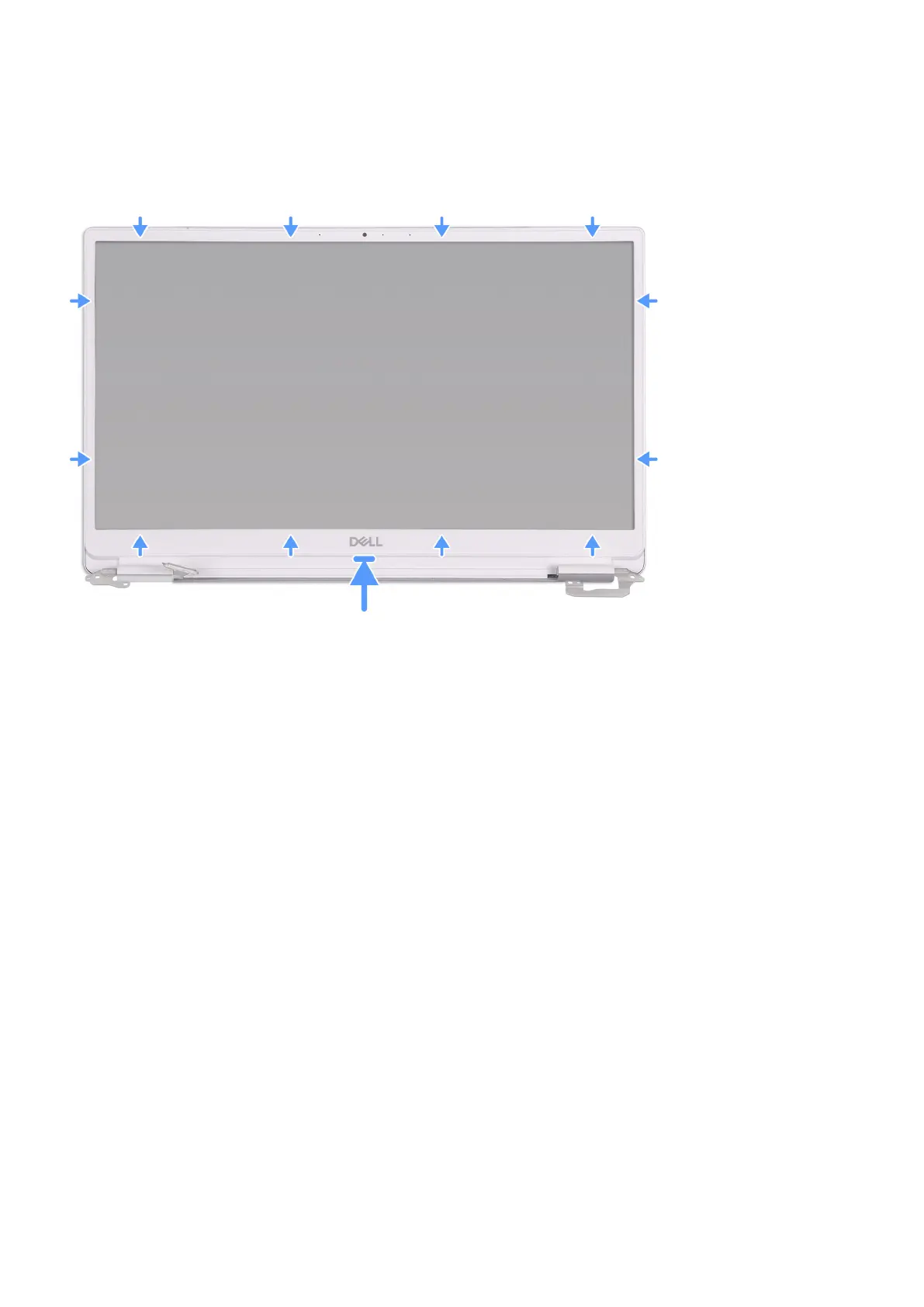

The following image indicates the location of display bezel and provides a visual representation of the installation procedure.
Align the display bezel with the display back-cover, and gently snap the display bezel into place.
1. Install the display assembly.
2. Install the WLAN card.
3. Install the battery.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
Display panel
Removing the display panel
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the display assembly.
6. Remove the display bezel.
The following image indicates the location of display panel and provides a visual representation of the removal procedure.
50
Removing and installing components
