The following image indicates the location of the base cover and provides a visual representation of the installation procedure.
1. Align and place the screw holes on the heat sink with the screw holes on the system board.
2. In sequential order (as indicated on the heat sink), tighten the seven captive screws that secure the heat sink to the system board.
3. Adhere the mylar tape that secures the heat sink to the system board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Fan
Removing the fan
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

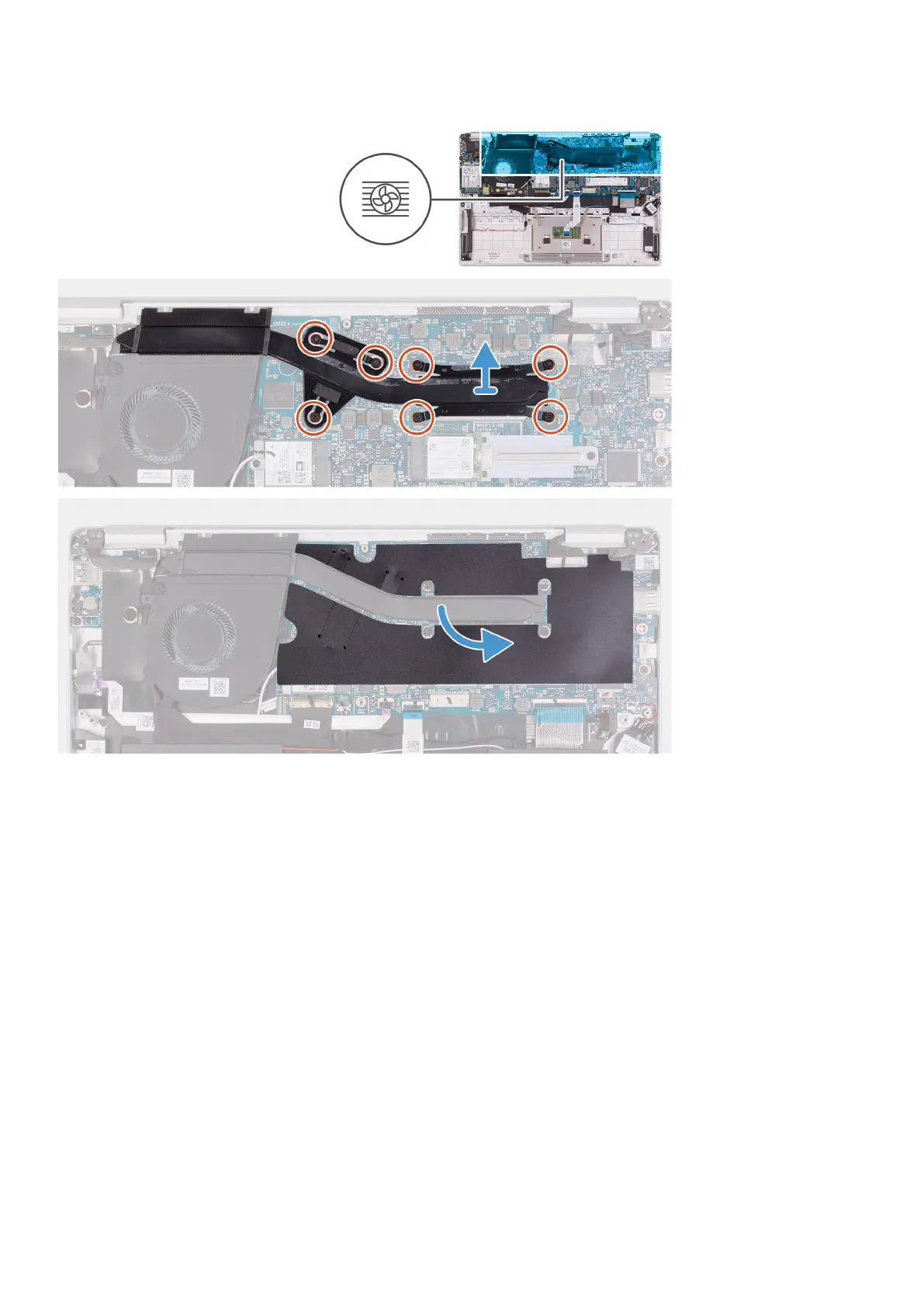

The following image indicates the location of fan and provides a visual representation of the removal procedure.
