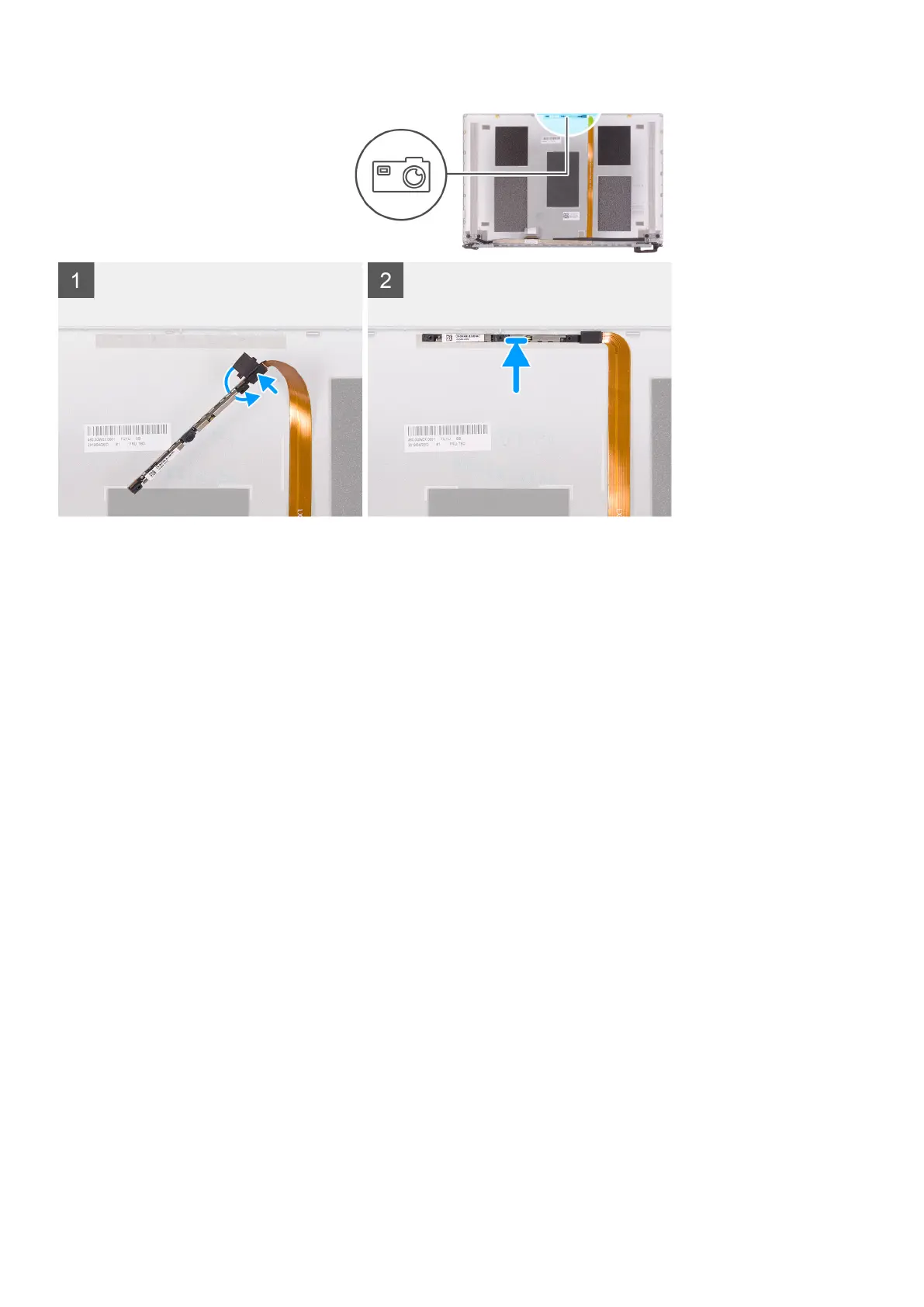

1. Adhere the camera to the display cable (tape) and connect the camera cable to the camera and turn it over.
2. Using the alignment post, turn the camera over and adhere to the display back-cover.
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the WLAN card.
5. Install the battery.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
Display cable
Removing the display cable
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the display panel.
6. Remove the display bezel.
The following image indicates the location of display cable and provides a visual representation of the removal procedure.
Removing and installing components
57
