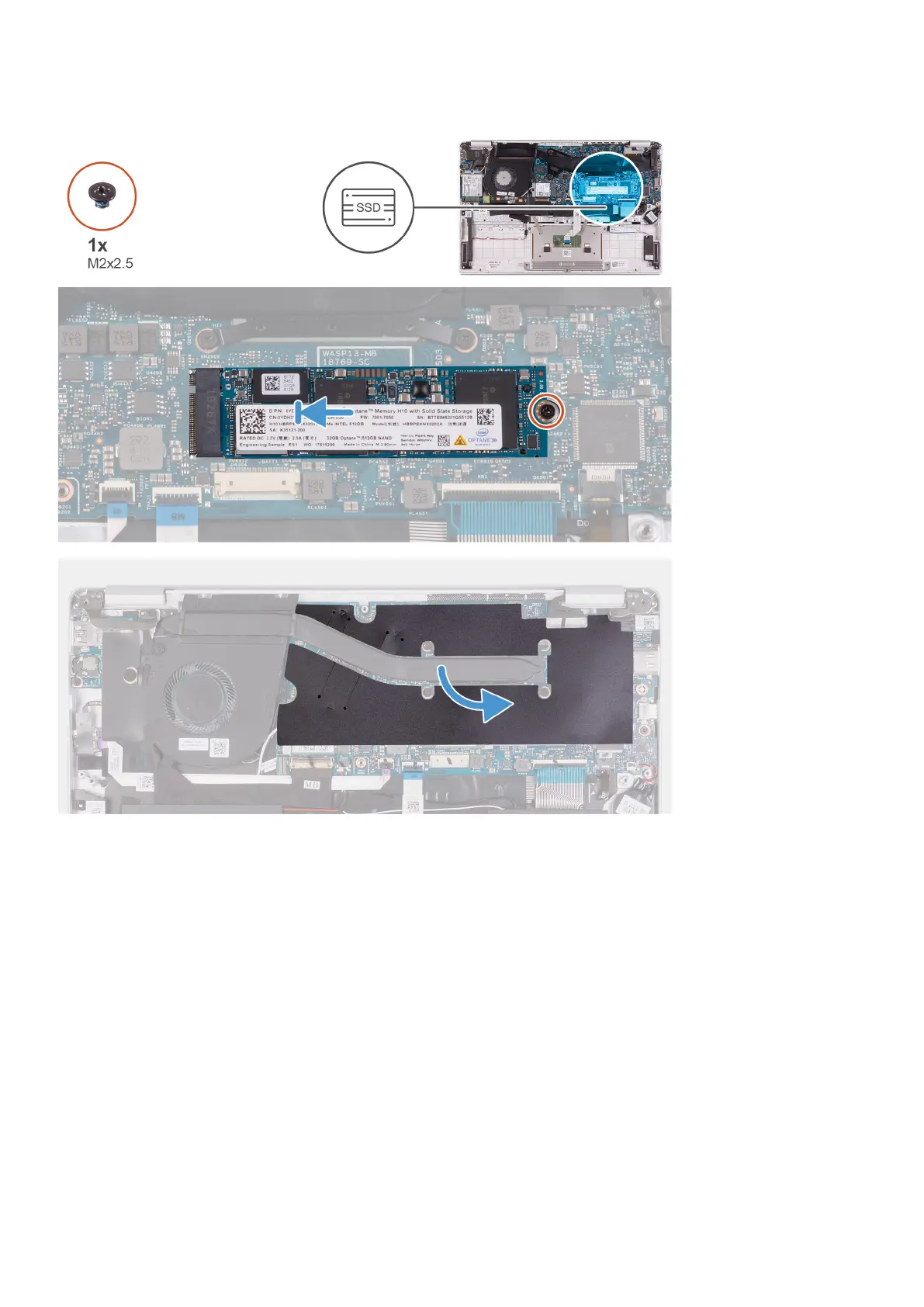

The following image indicates the location of the solid-state drive and provides a visual representation of the installation procedure.
1. Align the notch on the solid-state drive with the tab on the solid-state drive slot and slide the solid-state drive into the solid-state drive
slot on the system board.
2. Replace the screw (M2x2.5) that secures the solid-state drive to the system board.
3. Adhere the mylar tape that secures the heat sink to the system board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2230 solid-state drive
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
The following image indicates the location of the solid-state drive and provides a visual representation of the removal procedure.
18
Removing and installing components
