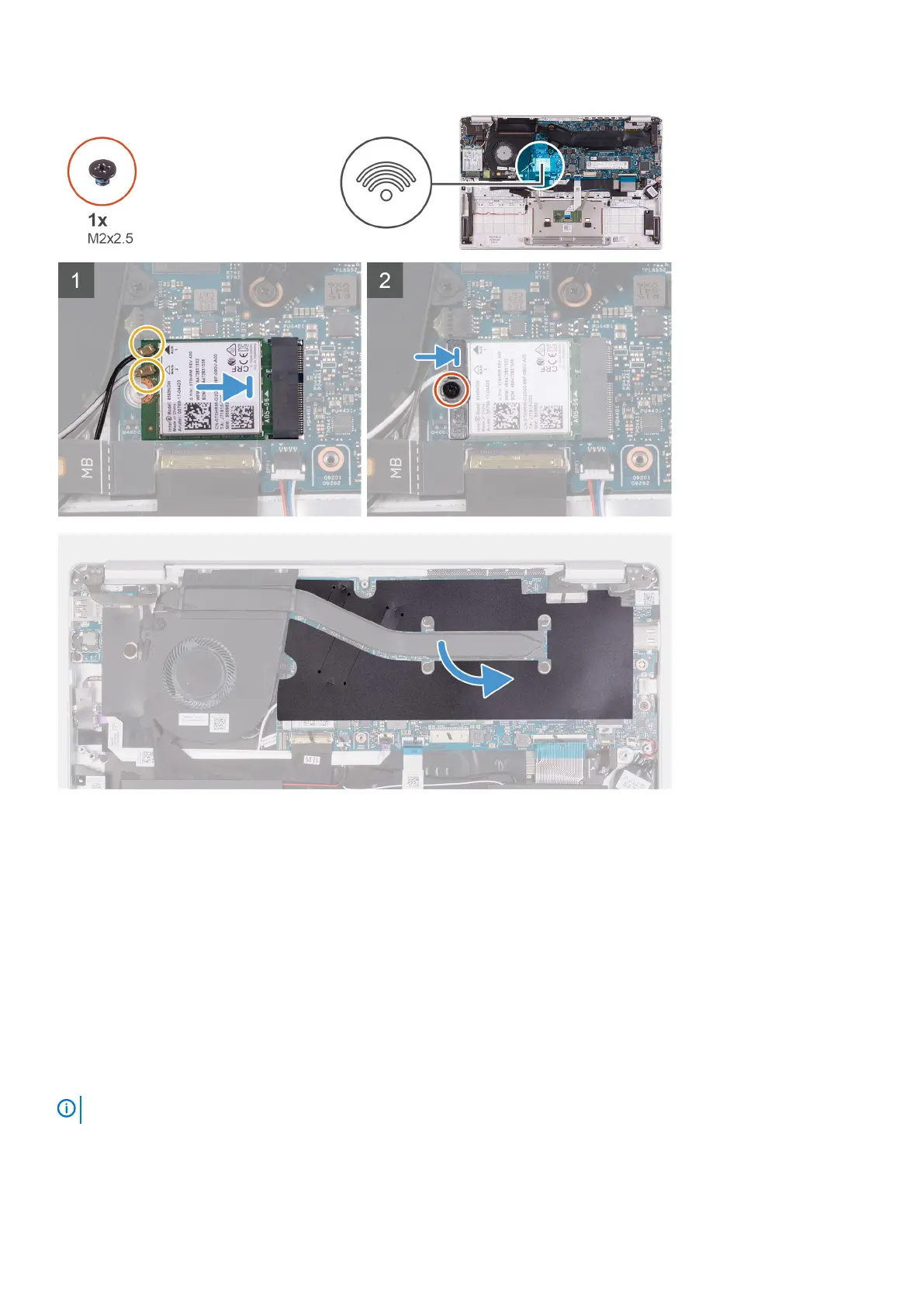

1. Connect the antenna cables to the WLAN card.
2. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN card slot.
3. Align and place the WLAN card bracket on the WLAN card.
4. Replace the screw (M2x2.5) to secure the WLAN card bracket to the WLAN card.
5. Ahere the mylar tape that secures the heat sink to the system board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
WWAN card
Removing the WWAN card
NOTE:
This procedure is only applicable for computers shipped with a WWAN configuration.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
