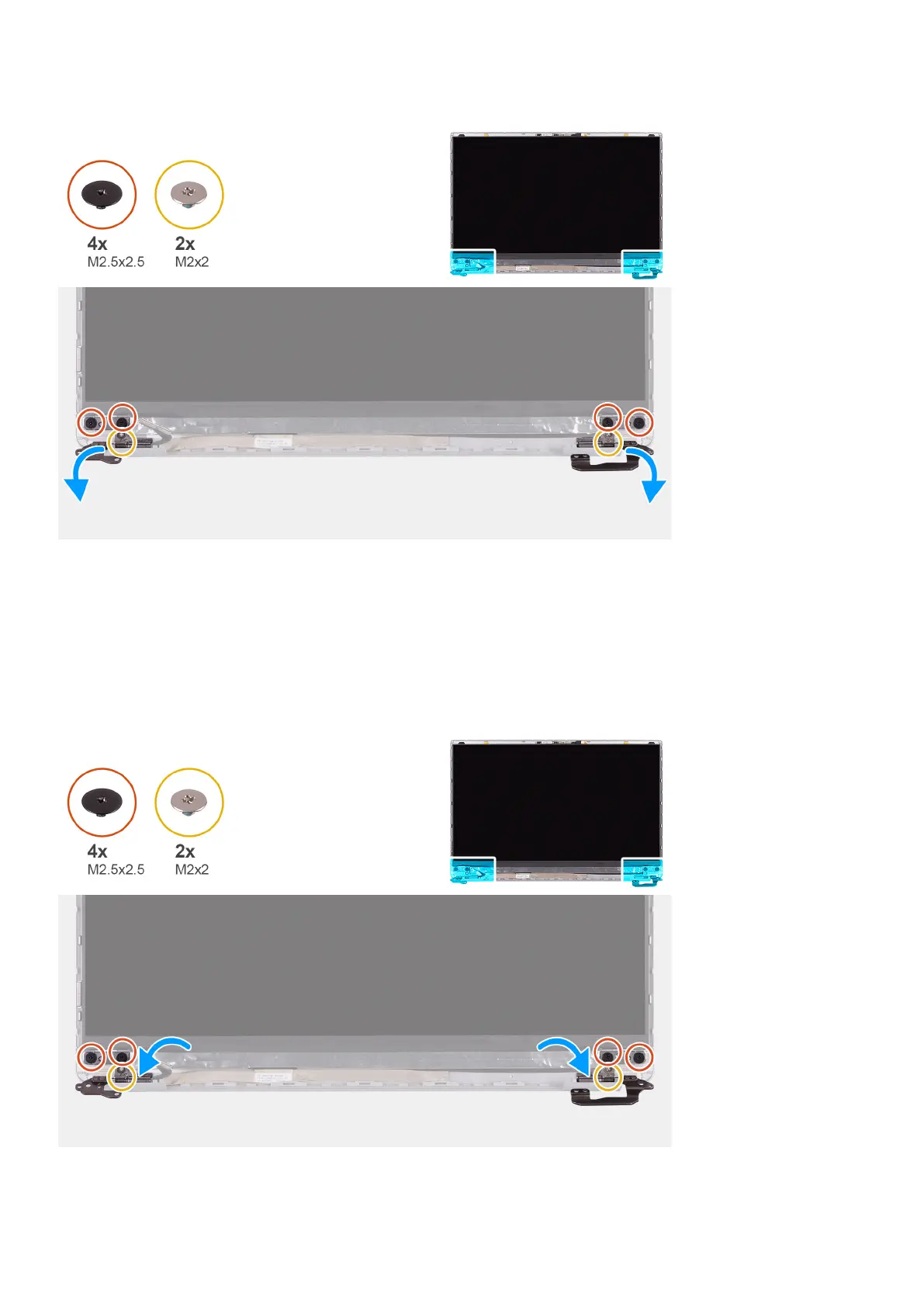

The following image indicates the location of display hinges and provides a visual representation of the removal procedure.
1. Remove the four (M2.5x2.5) screws that secure the display hinges to the display back-cover.
2. Remove the two (M2x2) screws that secure the display hinges to the display back-cover.
3. Slide and remove the display hinges off the display back-cover.
Installing the display hinges
If you are replacing a component, remove the existing component before performing the installation procedure.
The following image indicates the location of display hinges and provides a visual representation of the installation procedure.
1. Align the screw holes on the hinges with the screw holes on the display back-cover.
Removing and installing components
55
