5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Display back-cover
Removing the display back-cover
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the display assembly.
6. Remove the display bezel.
7. Remove the display hinges.
8. Remove thedisplay panel.
9. Remove the display cable.
10. Remove the camera.

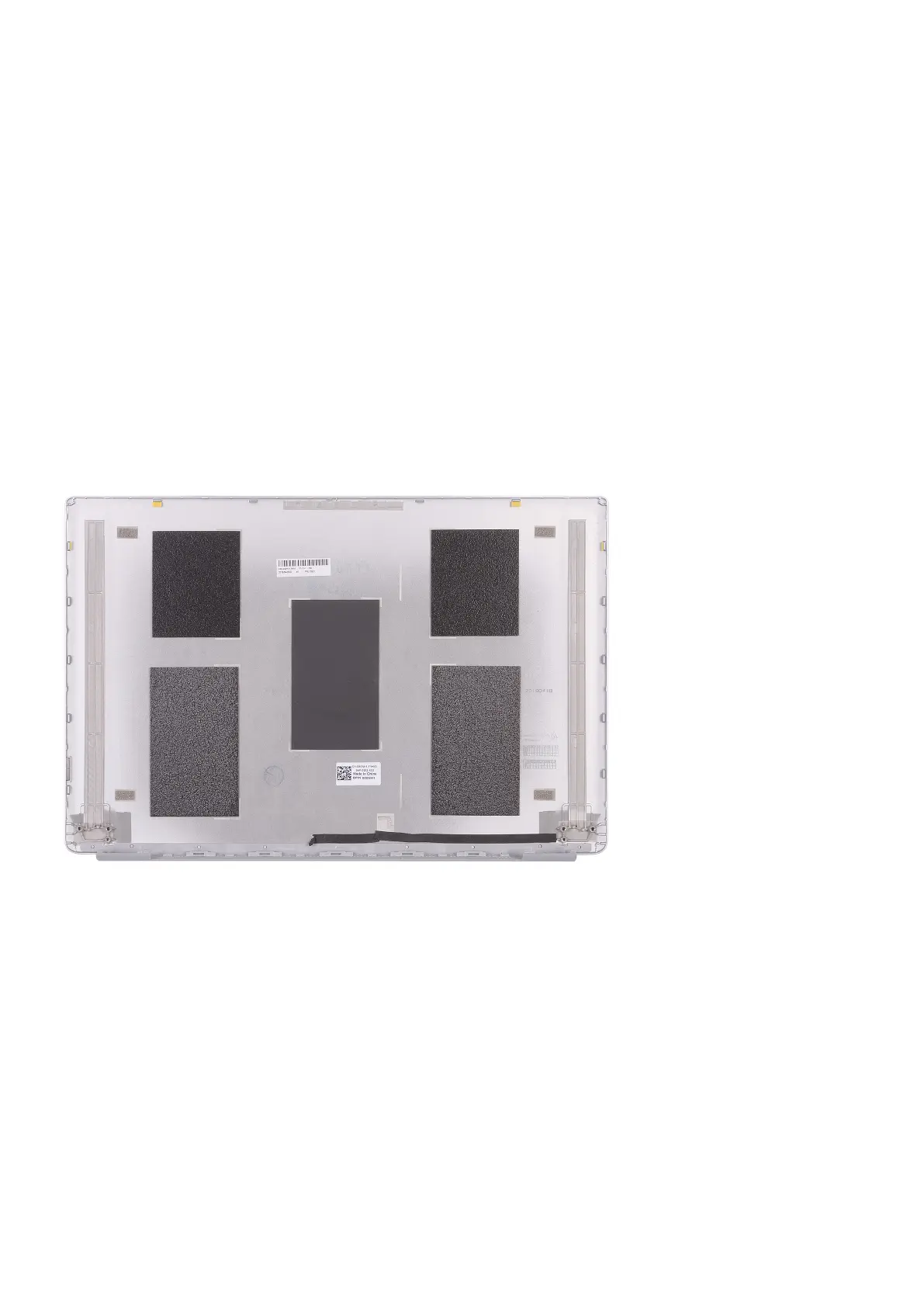

The following image indicates the display back-cover and provides a visual representation of the removal procedure.
After performing all the prerequisites, we are left with the display back-cover.
Installing the display back-cover
If you are replacing a component, remove the existing component before performing the installation procedure.
The following image indicates the display back-cover and provides a visual representation of the installation procedure.
Removing and installing components
59
