2. Replace the two (M2x2) screws that secure the display hinges to the display back-cover.
3. Replace the four (M2.5x2.5) screws to secure the display hinges to the display back-cover.
1. Install the display bezel.
2. Install the display assembly.
3. Install the WLAN card.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Camera
Removing the camera
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the display assembly.
6. Remove the display bezel.
7. Remove the display panel.

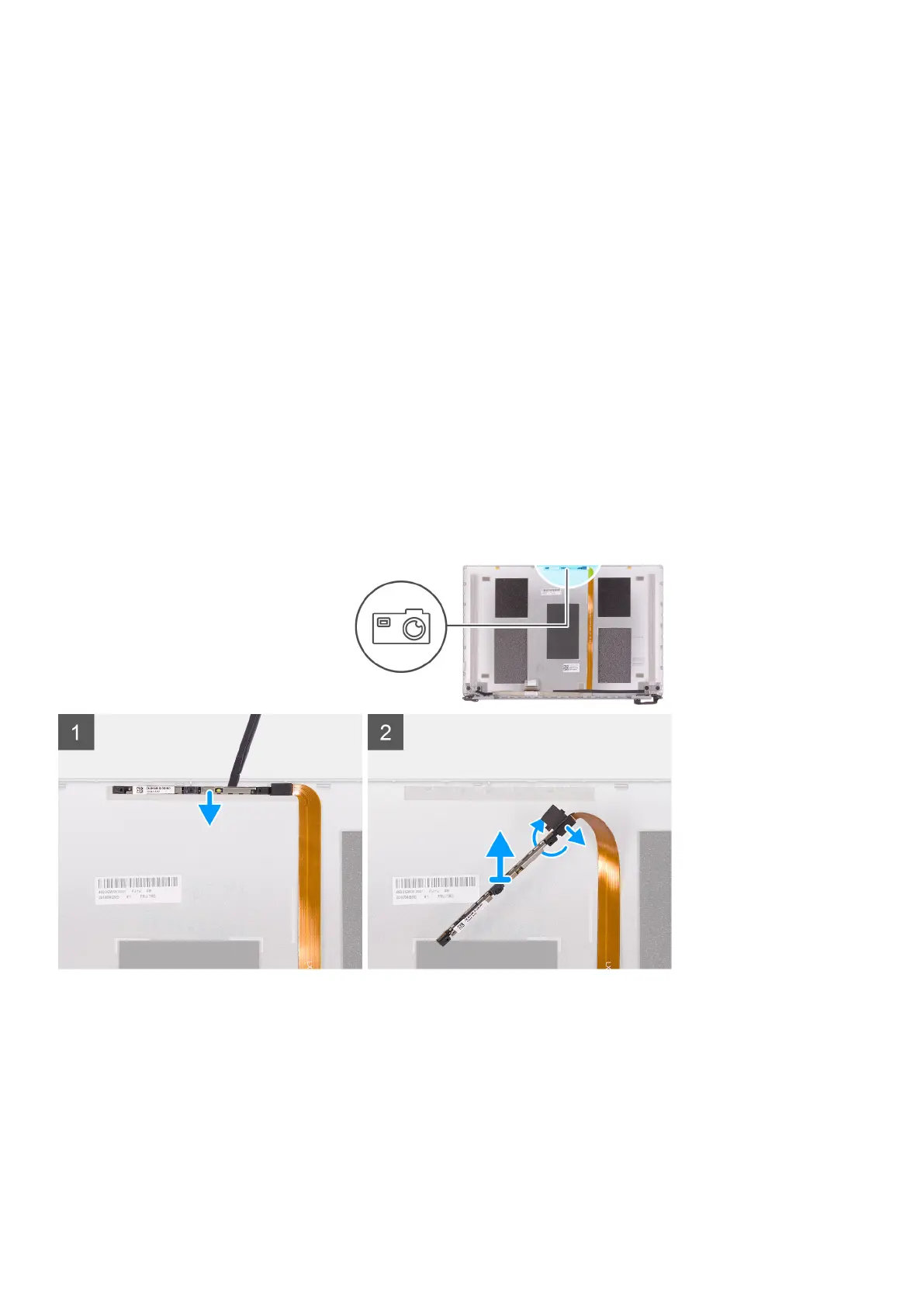

The following image indicates the location of camera and provides a visual representation of the removal procedure.
1. Using a plastic scribe, pry the camera from the alignment post on the display back-cover.
2. Turn over the camera and disconnect the camera cable off the camera.
3. Peel the tape off the camera and lift the camera off the display back-cover.
Installing the camera
If you are replacing a component, remove the existing component before performing the installation procedure.
The following image indicates the location of camera and provides a visual representation of the installation procedure.
56
Removing and installing components
