Delta VFD-V Series User Manual

4
VFD-V Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
4-1

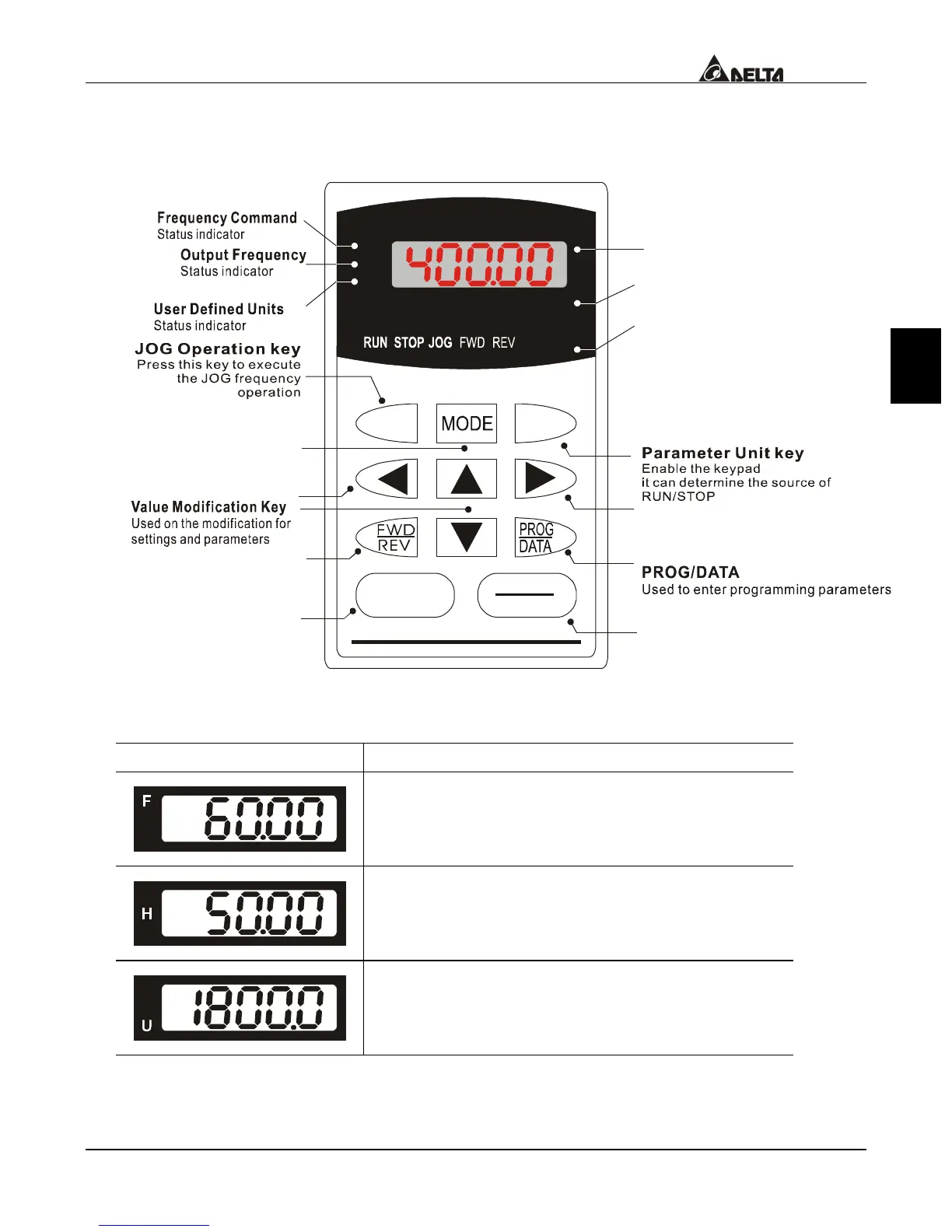

CHAPTER 4 DIGITAL KEYPAD (VFD-PU05) OPERATION
4.1 Description of the Digital Keypad VFD-PU05
U
F
H
VFD-PU05
JOG
RUN
RESET
STOP
MODE Selection key
Press this key to view different
operating values
LED Display
Display frequency, current, voltage
and error, etc.
Status Display
Display the driver's current status
When "PU" lights, RUN/STOP is
controlled by PU05. When "PU" is
dark, RUN/STOP is set by 00-21.
When "EXT" lights, frequency
command and torque command
is set by 00-20. When "EXT" is dark,
it is controlled by PU05.
Part Number
STOP/RESET
Left key
moves cursor to the left
PU
EXT PU
Right key
Moves the cursor right
FWD/REV Direction key
RUN key
4.2 Explanations of Display Messages
Messages Displayed Descriptions
Master frequency of the drive
A
ctual operation frequency output to the motor from
the drive
User-selected content (the side DC-BUS voltage)
